This mode of 2.4/5.8ghz sector antennas has cover frequencies from 2400 to 2500 MHz, the 2.4/5.8ghz sector antennas ensure compatibility with a wide range of wireless systems and devices. They enable seamless communication in both the 2.4 GHz and 5.8 GHz bands, allowing for versatile deployment options.
This wide coverage angle enables the antenna to serve multiple clients simultaneously in the certain 2.4/5.8ghz sector antenna height, making it ideal for point-to-multipoint applications.
Equipped with both horizontal and vertical polarization, this 2.4/5.8ghz sector antenna ensures optimal signal transmission and reception in diverse scenarios. The dual-polarization capability improves signal integrity, mitigating the impact of interference and maximizing network performance.
|
Model |
TDS-2458-17HV |
|
|
Frequency Range |
2400 - 2500 MHz |
5725 – 5850 MHz |
|
Gain |
14 dBi |
17 dBi |
|
Horizontal Beamwidth(3dB) |
65° |
90° |
|
Vertical Beamwidth(3dB) |
15° |
8° |
|
Polarization |
Horizontal+Vertical |
|
|
VSWR |
≤ 1.5 |
|
|
Impedance |
50 Ω |
|
|
Connector |
2 x N-Female |
|
|
Max. Power |
100 W |
|
|
Lightning Protection |
DC Ground |
|
|
Dimension |
960 x 128 x 58 mm |
|
|
Weight |
3 kg |
|
|
Operating Temperature |
-40℃～+60℃ |
|
|
Wind Loading |
210 km/h |
|
|

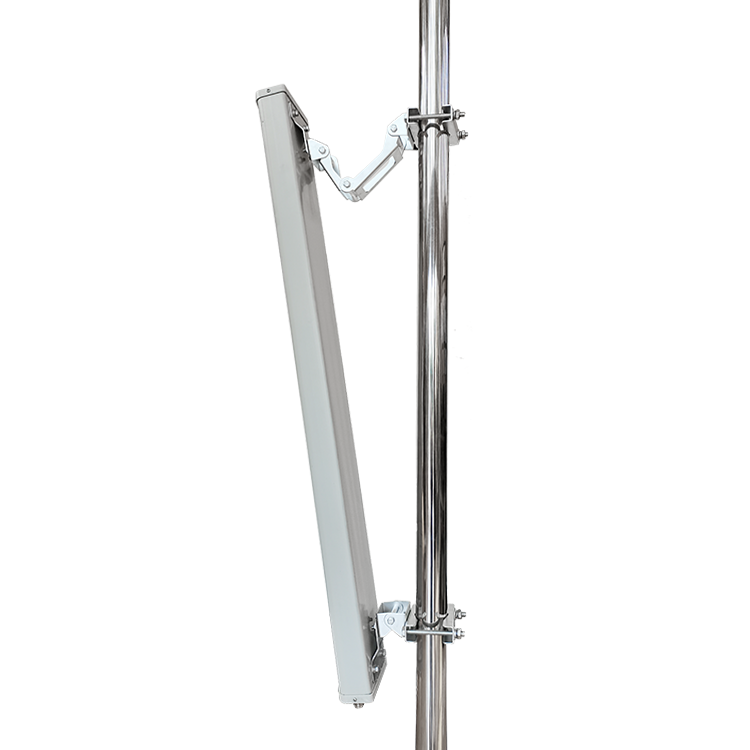

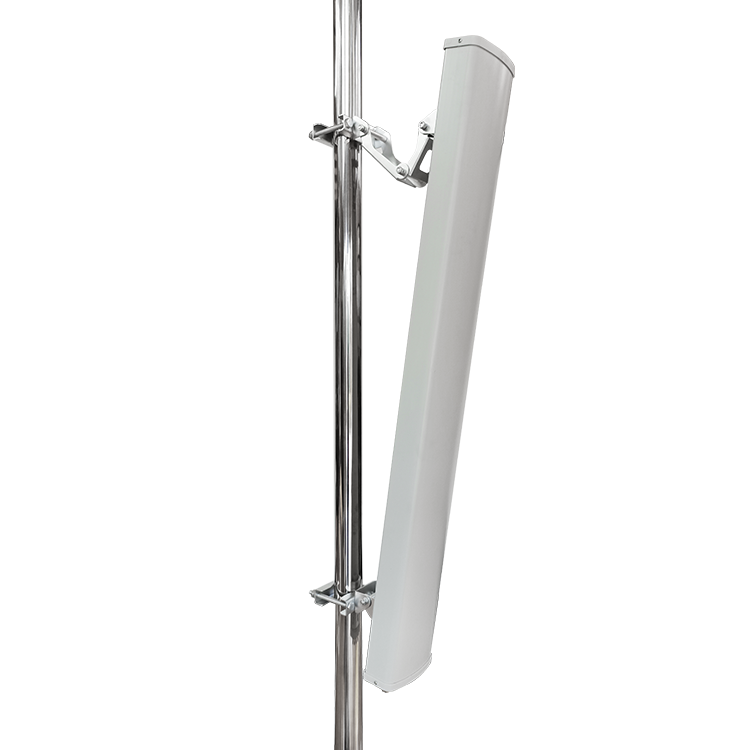

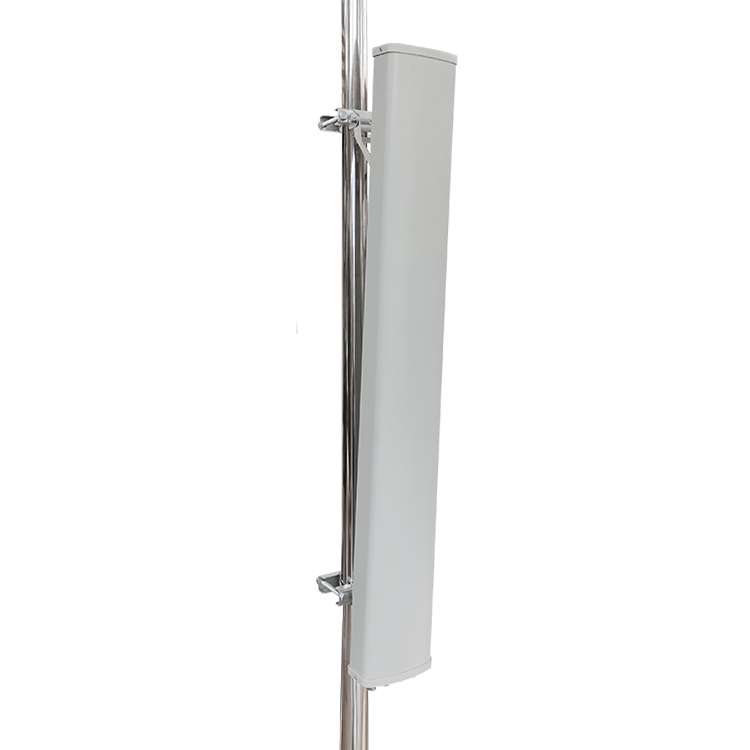

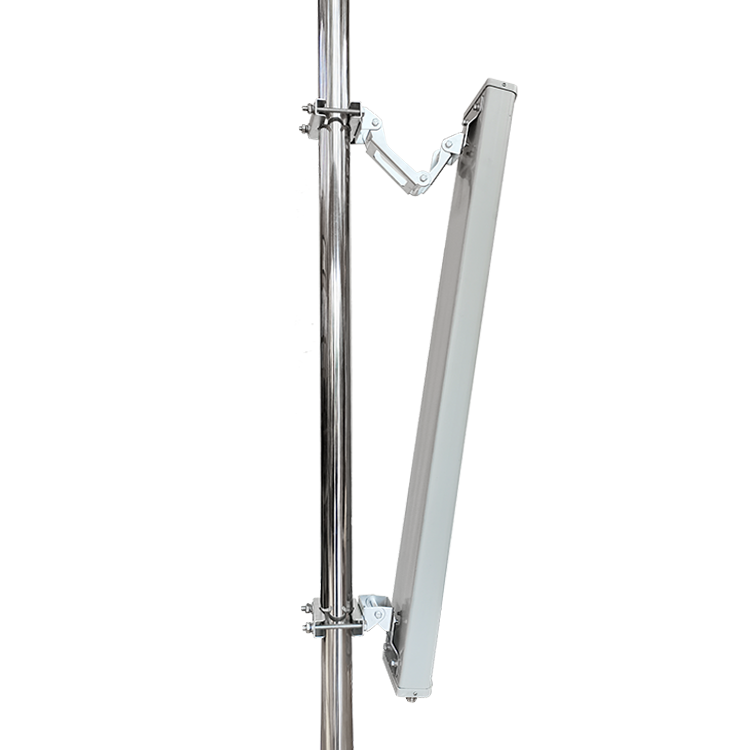

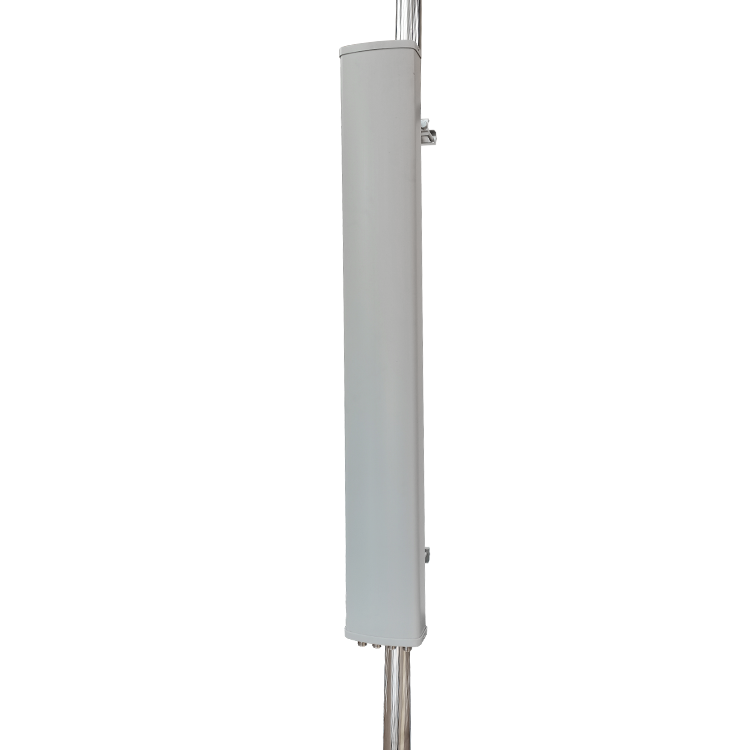

Mounting |
Pole Mount |
|
