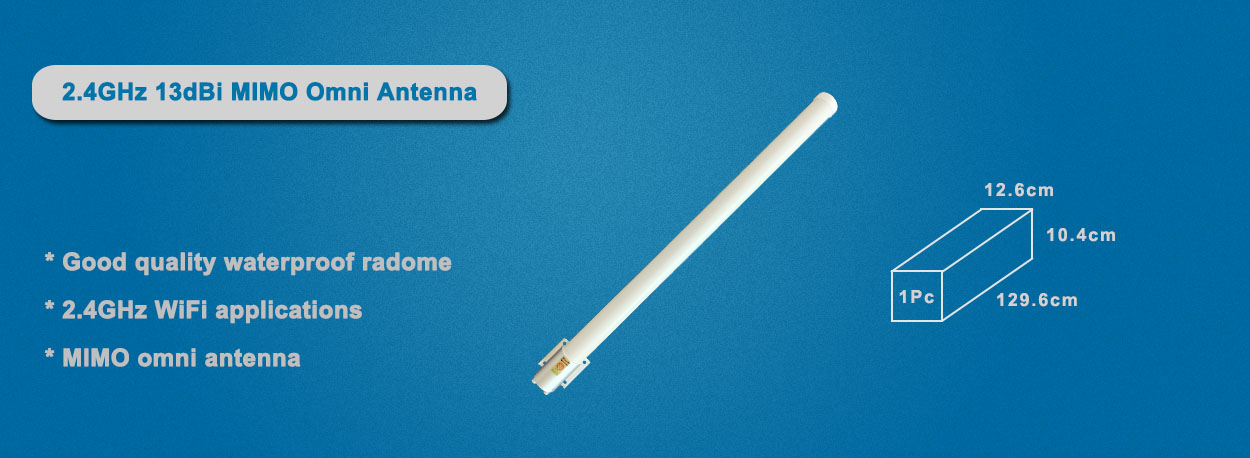

2.4 GHz 13 dBi MIMO Omni Antenna

Model: TQO-2425-13HV

Freq.: 2400-2500 MHz

Gain: 13 dBi

VSWR: ≤1.5

HPBWH: 360°

HPBWV:

Polarization: Horizontal+Vertical

  • High gian and low VSWR
  • Good quality materials
Contact Us

13dbi Omni Antenna

The MIMO omni antenna is a 2.4GHz dual-polarized omnidirectional antenna with high performance and low VSWR in the frequency range of 2400 MHZ to 2500MHz. The 13dBi's high gain allows it to receive distant signals and cover a wide enough area to solve the WiFi signal coverage problem.

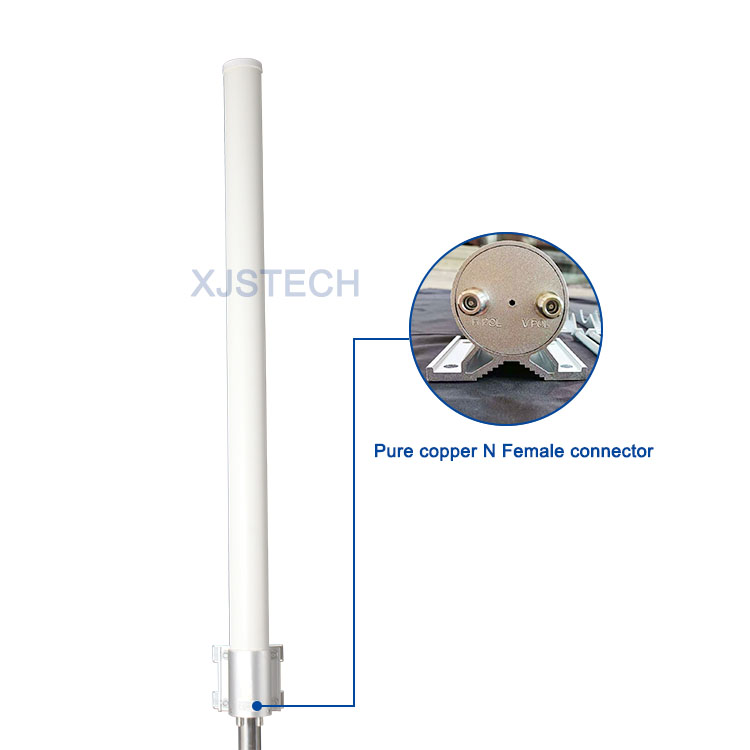

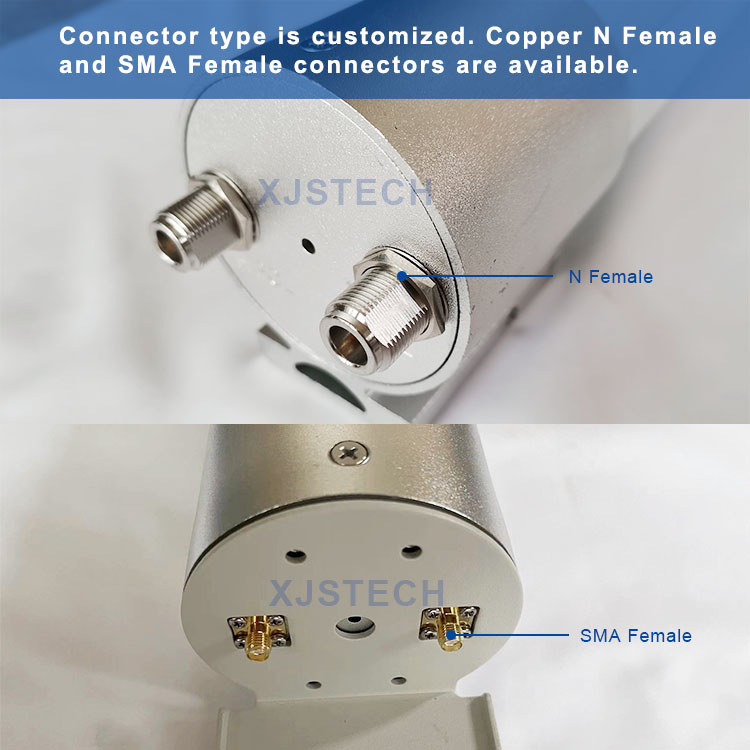

The antenna uses high quality radome and pure copper connectors. Customers can choose N-female connectors or SMA connectors as required. Over the years, this antenna with good quality, won the favor of customers at home and abroad.

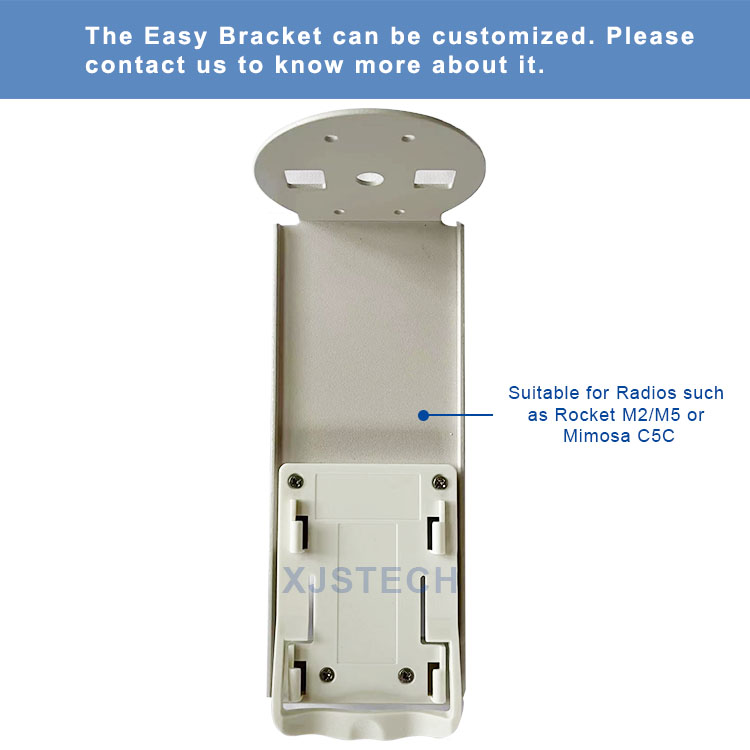

XJS Technology has unique mounting brackets that allow Ubiquiti RocketM2 radio to connect directly to antenna. In addition, XJS Technology provides a pair of low-loss cable accessories for connecting Rocket M2 to the antenna. Contact XJS staffs to purchase according to your actual needs.

13dbi Omni Antenna

13dbi Omni Antenna

13dbi Omni Antenna

Model

TQO-2425-13HV

Frequency Range

2400 - 2500 MHz

Gain

13 dBi

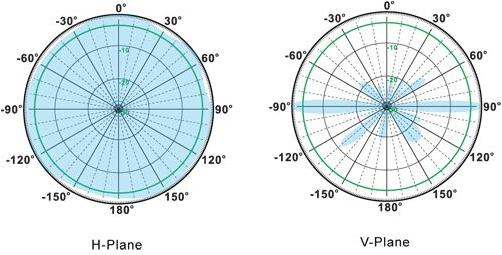

Horizontal Beamwidth(3dB)

360°

Vertical Beamwidth(3dB)

Polarization

Horizontal+Vertical

VSWR

≤ 1.5

Impedance

50 Ω

Connector

N-Female or N-Male

Max. Power

100 W

Lightning Protection

DC Ground

Dimension

Φ 75 x 1265 mm

Weight

3.5 kg

Operating Temperature

-40℃~+65℃

Wind Loading

140 km/h

Mounting

Pole Mount




  • Bluetooth® & Public Wireless Hotspot
  • 2.4 GHz Indoor/Outdoor Wireless LAN systems
  • Supports IEEE 802.11b/g/n applications
  • WiFi and 2.4 GHz wireless video systems
  • Public safety
