Model |

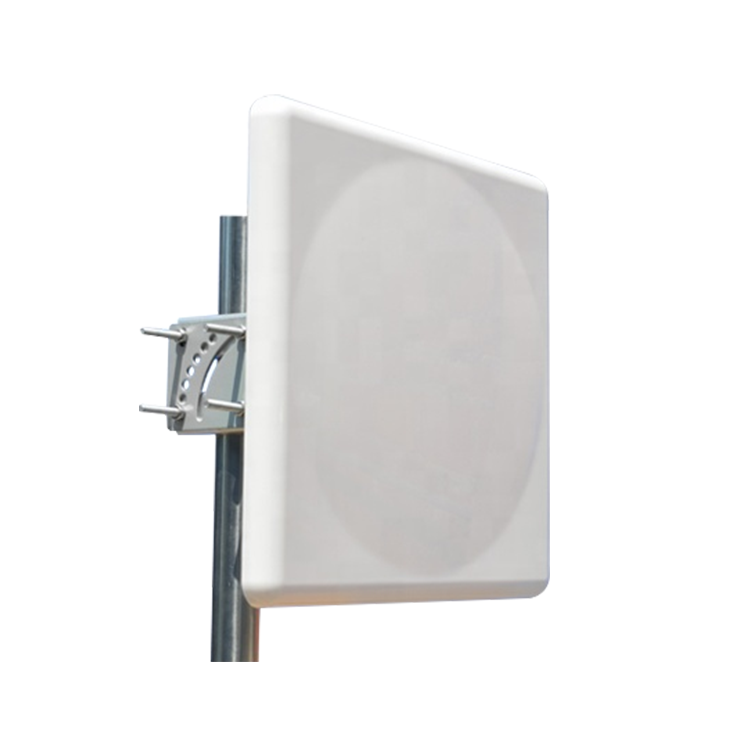

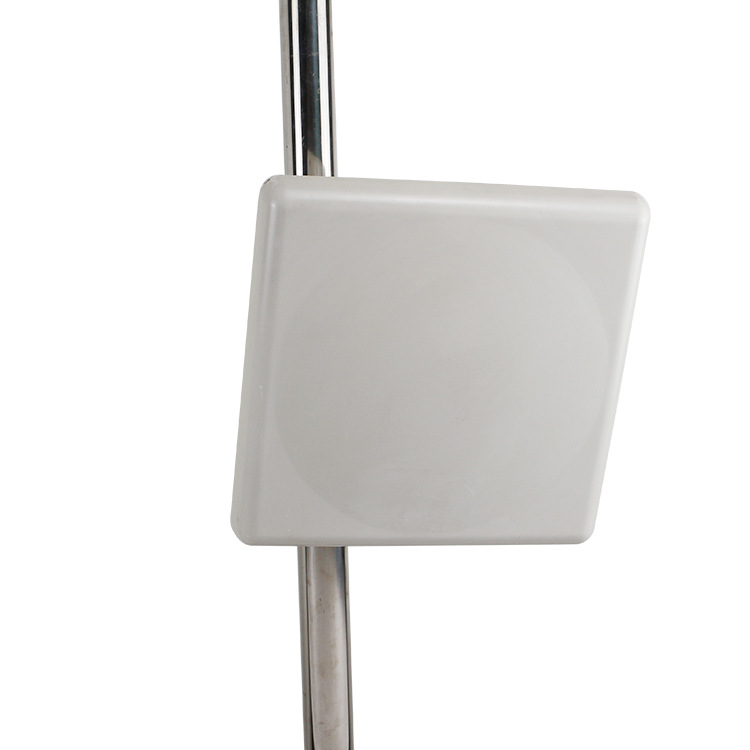

TDP-2425-18 |
|
Frequency Range |
2400 - 2500 MHz |
|
Gain |
18 dBi |
|
Horizontal Beamwidth(3dB) |
20° |
|
Vertical Beamwidth(3dB) |
20° |
|
Polarization |
Vertical |
|
VSWR |
≤ 1.5 |
|
F/B Ratio |
≤ 25 dB |
|
Impedance |
50 Ω |
|
Connector |
N-Female |
|
Max. Power |
100 W |
|
Lightning Protection |
DC Ground |
|
Dimension |
306 x 306 x 30 mm |
|
Weight |
2.6 kg |
|
Operating Temperature |
-40℃～+60℃ |
|
Wind Loading |
210 km/h |
|
Mounting |
Pole Mount |
