Freq.: 4900-6400 MHz
Gain: 30 dBi
VSWR: ≤1.8
HPBWH: 5.5°
HPBWV: 5.5°
Polarization: Horizontal+Vertical
.png)

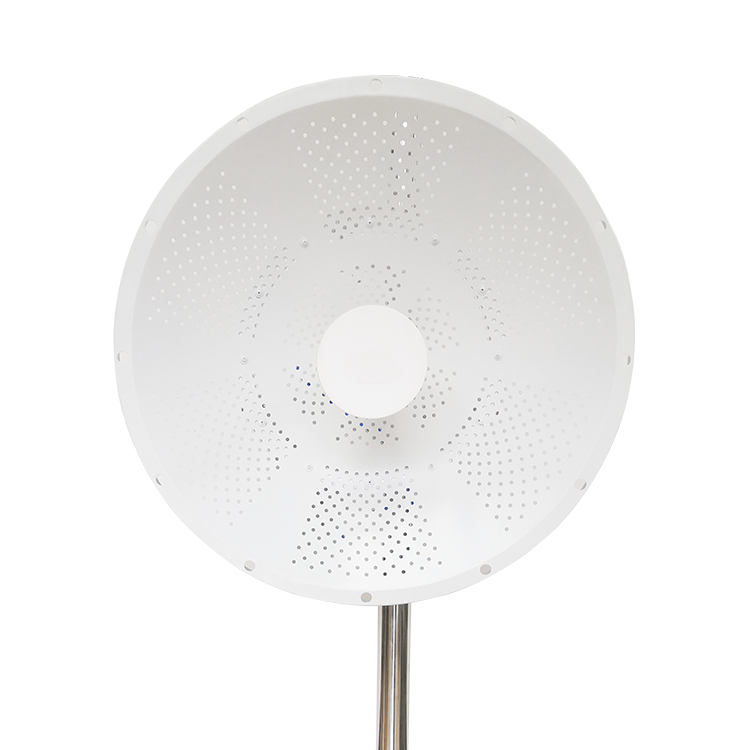

The model TDD-4964-30HV is a popular MIMO parabolic antenna of XJS technology. It has the characteristics of high gain(30dBi) and high front to back ratio. It can maintain high performance in the frequency range of 4900-6400MHz and is suitable for outdoor remote point-to-point(PTP) 5GHz WiFi signal transmission to solve the problem of remote signal reception or transmission. XJS technology uses 1.5mm thick parabolic dish, sufficient material, make the antenna durable.
This antenna uses pure copper N-Female connector and is equipped with two low-loss RG141 jumper cables to reduce signal transmission loss and ensure high performance of the antenna.

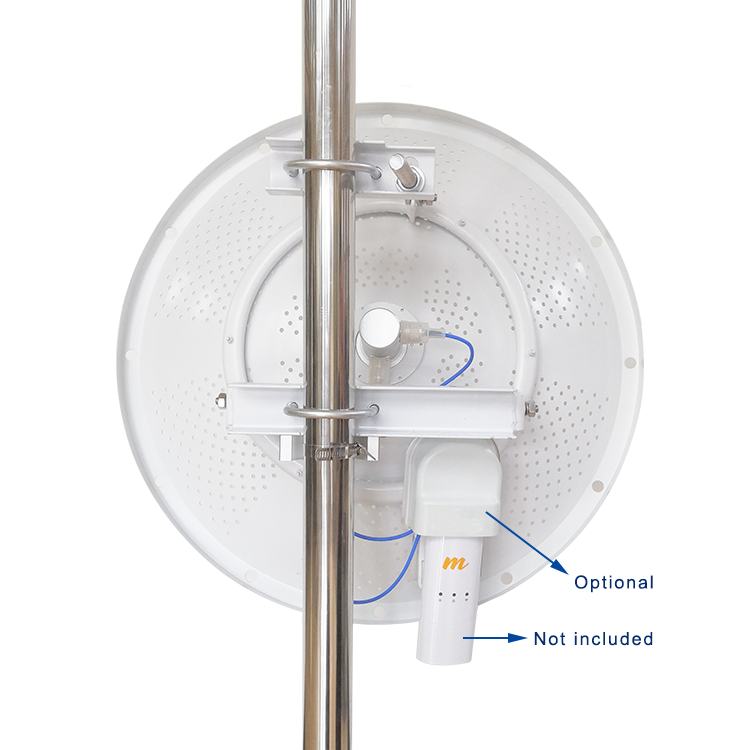

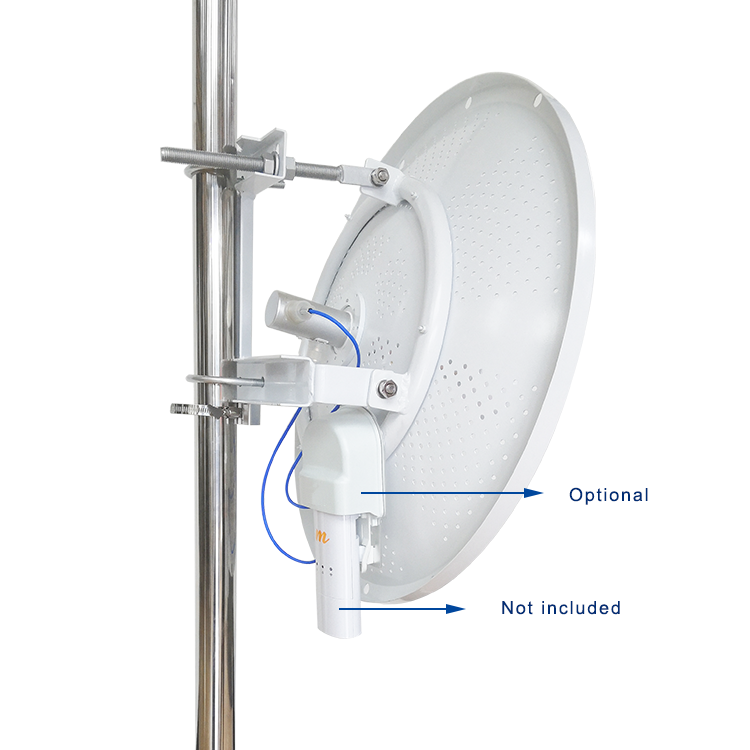

In terms of installation details, XJS technology has made more humanistic consideration for parts, making installation faster and more convenient, and improving users' experience of use.
Over the years, with good antenna quality and professional service, XJS Technology has been favored by customers.
|
Model |
TDD-4964-30HV |
|
Frequency Range |
4900 - 6400 MHz |
|
Gain |
30 dBi |
|

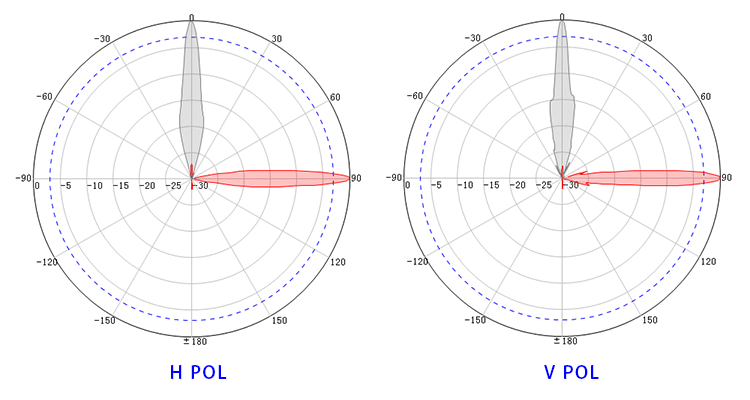

Horizontal Beamwidth(3dB) |
5.5° |
|
Vertical Beamwidth(3dB) |
5.5° |
|
Polarization |
H+V |
|
F/B Ratio |
≥ 32 dB |
|
VSWR |
≤ 1.8 |
|
Impedance |
50 Ω |
|
Connector |
2 x N-Female |
|
Max. Power |
50 W |
|
Lightning Protection |
DC Ground |
|
Dimension |
Dia.600 mm |
|
Weight |
5 kg |
|
Operating Temperature |
-35℃～+50℃ |
|
Wind Loading |
130 km/h |
|

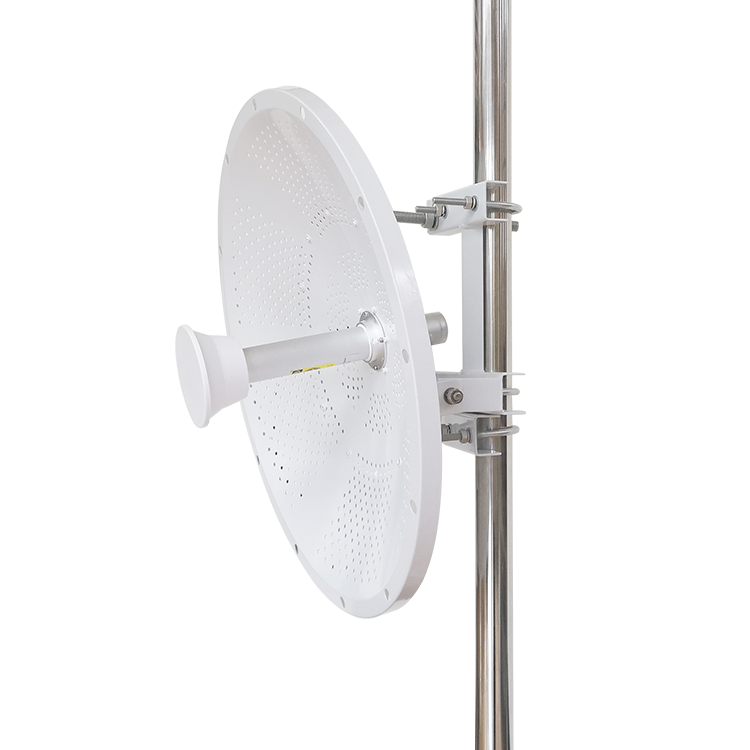

Mounting |
Pole Mount |
4.9/5.1/5.3/5.4/5.8/6.1/6.4 GHz Wireless LAN systems
IEEE 802.11a/n applications
MIMO applications WiMAX, WISP, WiFi, mobile communication and cell-sites
Security monitor
Point-to-multipoint applications
