Freq.: 698-4200 MHz
Gain: 7/9 dBi
VSWR: ≤1.5
HPBWH: 70°/60°
HPBWV: 55°/45°
Polarization: Vertical

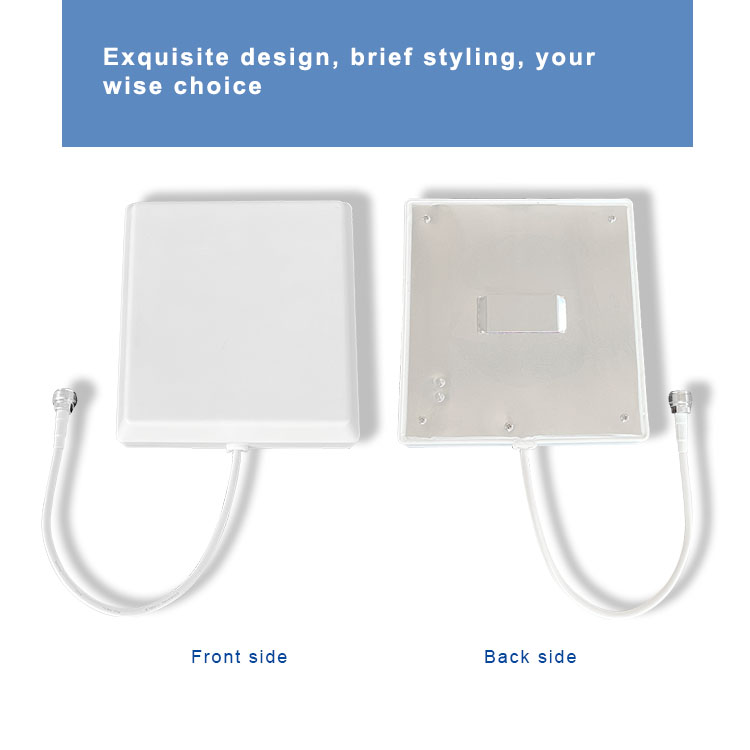

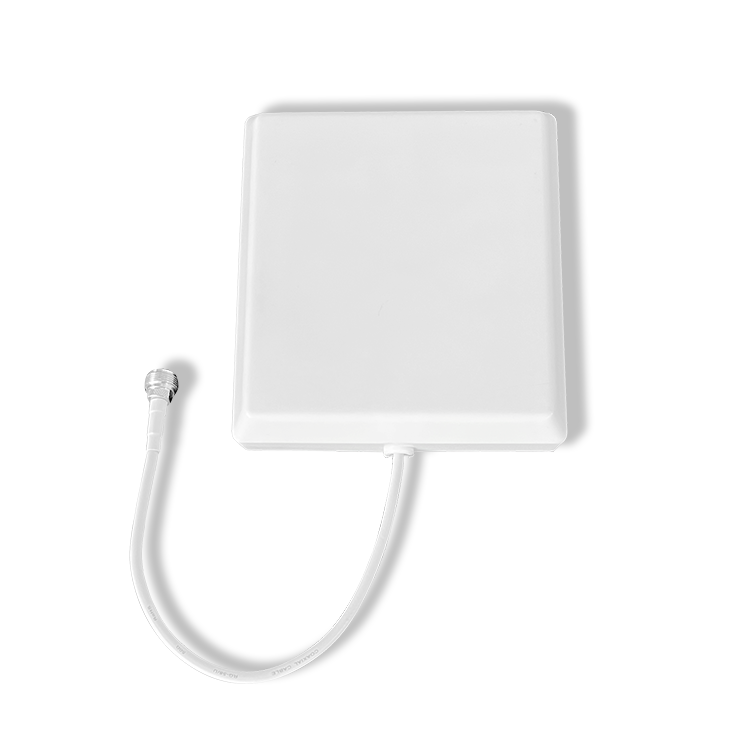

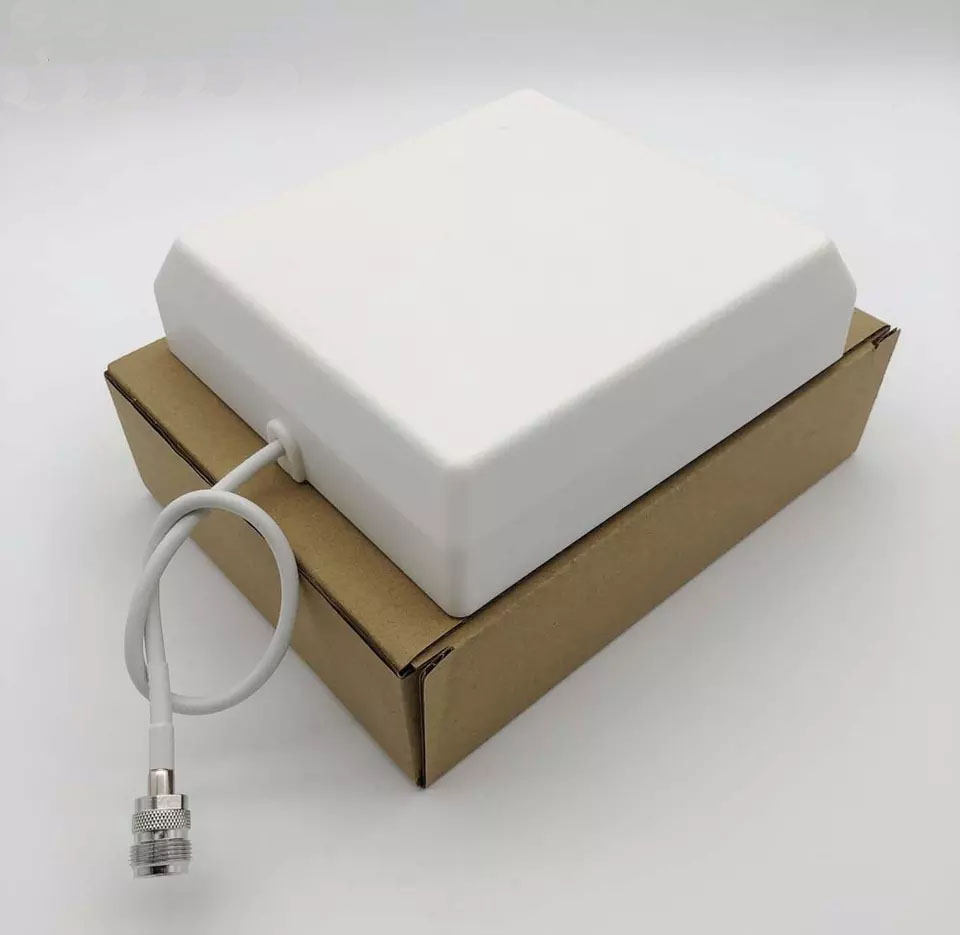

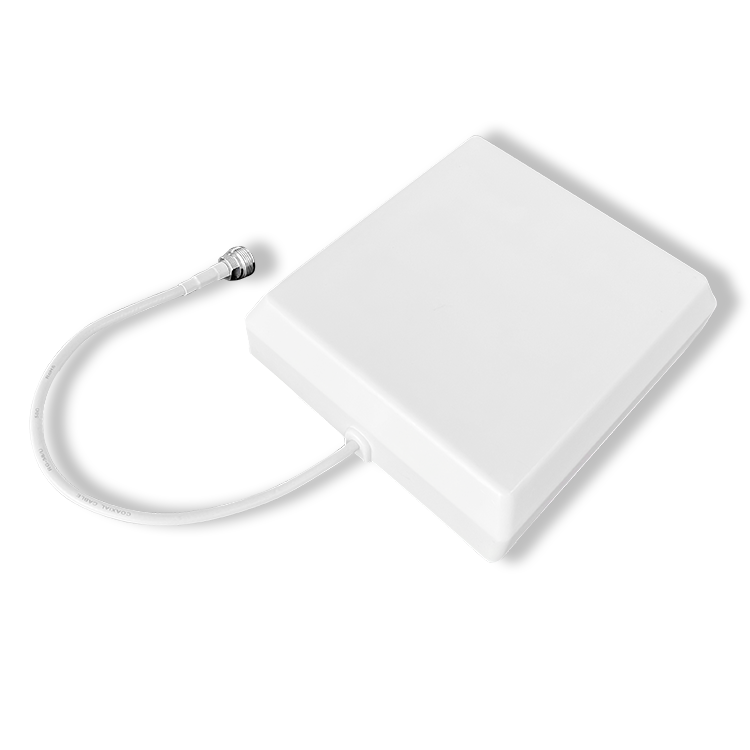

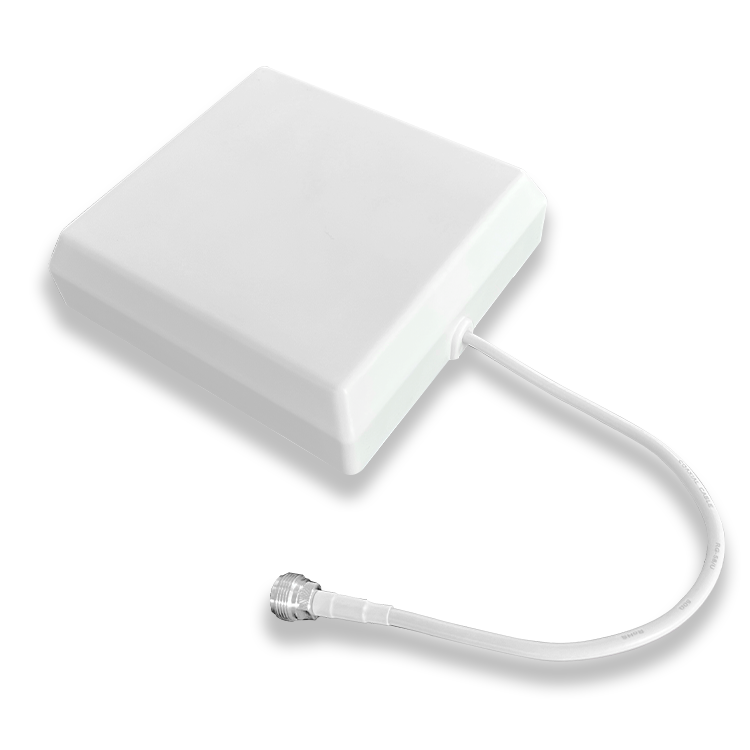

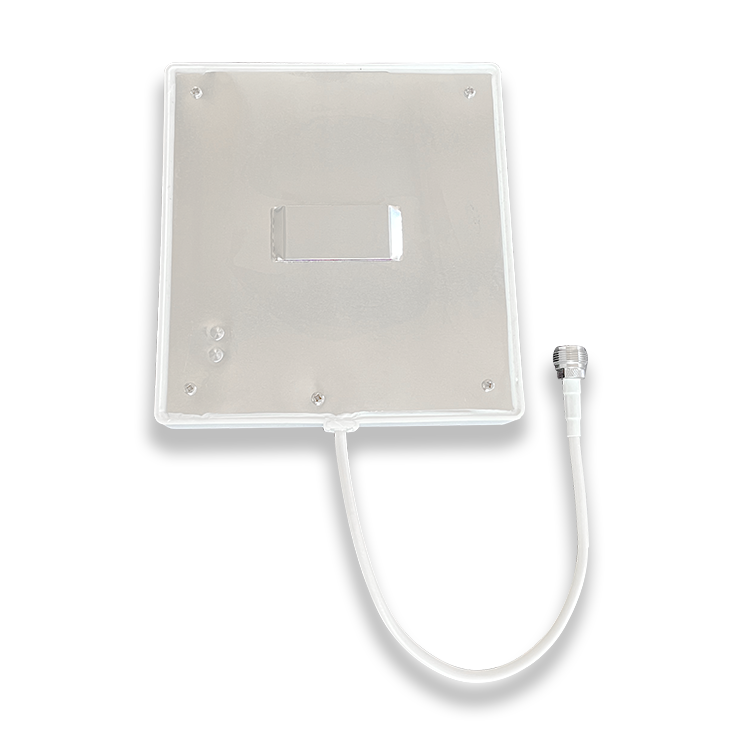

This DAS indoor wall-mounted antenna is a compact 5G/4G LTE panel antenna with high performance and low standing wave ratio in the frequency range of 698-4200MHz, suitable for distributed antenna systems (DAS) to solve building coverage problems. In addition to its good performance in the working band of 5G/4G LTE, it can also cover the 3G and 2G bands, which can meet the needs of most users worldwide and help the majority of users solve the problem of indoor signal coverage.

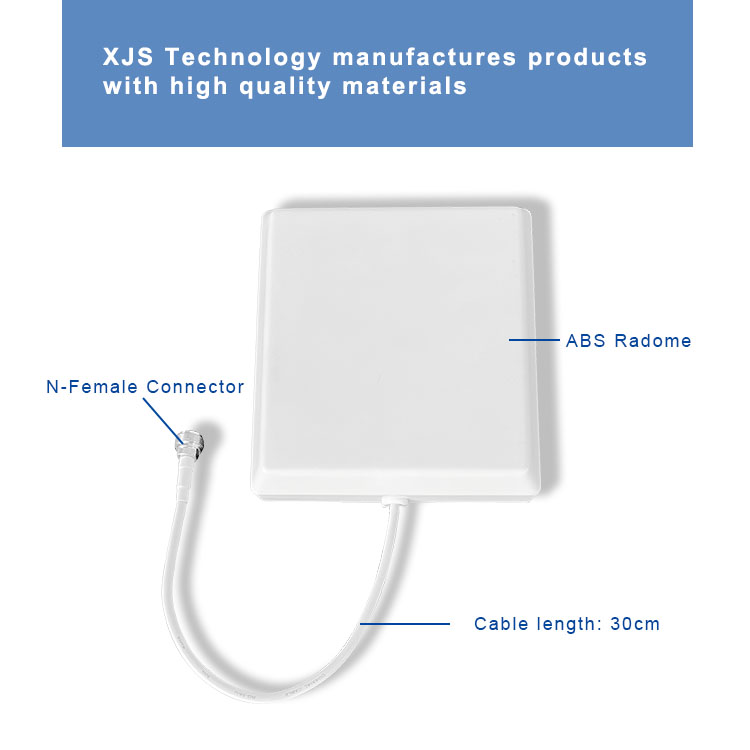

This antenna uses low loss cable and pure copper N-Female connector to ensure high efficiency of the antenna.
XJS Technology offers customized cable lengths, cable types and connector types. Contact us for support, your satisfaction is our greatest honor.
.jpg)
.jpg)
.jpg)
.jpg)
|
Model |
TDP-0642-9 |
|
|
Frequency Range |
698 - 960 MHz |
1710 - 4200 MHz |
|
Gain |
7 dBi |
9 dBi |
|
Horizontal Beamwidth(3dB) |
70° |
60° |
|
Vertical Beamwidth(3dB) |
55° |
45° |
|
Polarization |
Vertical |
|
|
VSWR |
≤ 1.5 |
|
|
Impedance |
50 Ω |
|
|
Connector |
N-Female |
|
|
Max. Power |
50 W |
|
|
Lightning Protection |
DC Ground |
|
|

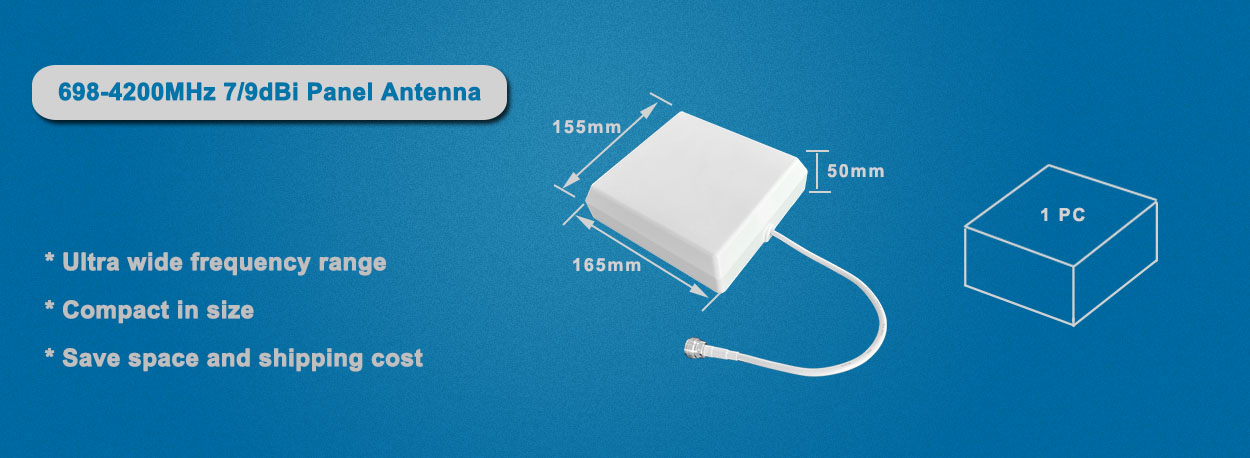

Dimension |
165 x 155 x 50 mm |
|
|
Weight |
0.4 kg |
|
|
Operating Temperature |
-40℃～+65℃ |
|
|
Wind Loading |
140 km/h |
|
|

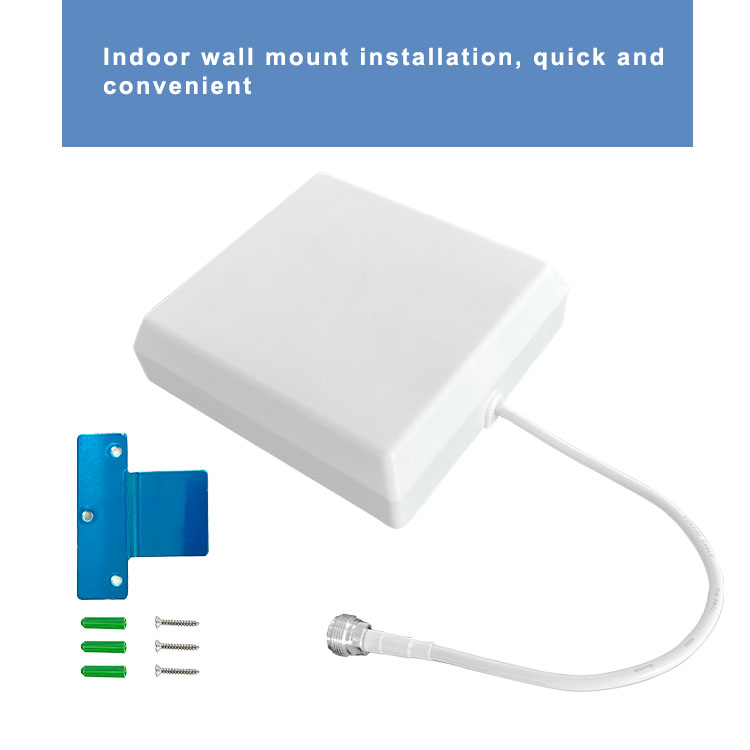

Mounting |
Wall Mount or Pole Mount |
|
