What is An Omni Directional Antenna?

21 Nov, 2023

In our increasingly connected world, wireless communication plays a pivotal role in our daily lives. Whether it's for internet access, radio broadcasting, or satellite communication, antennas are the most crucial parts of the systems. Without antennas, may there would be no network world.

In the complex connected world, the omni directional antenna is one of the outstanding parts of the systems. In this post, the author will give full outdoor omnidirectional antenna reviews, including its definition, working principle, application, etc.

What is An Omni Directional Antenna?

The omni directional wifi antenna is a type of indoor and outdoor antenna that serves wireless communication systems, such as Wi-Fi networks, cellular networks, and two-way radio systems, etc. The omni antenna is engineered to radiate or receive radio frequency (RF) signals in all directions, 360 degrees around its axis, without the need for alignment or orientation. With this omni design, the omni antenna is capable of transmitting or receiving signals from all directions simultaneously.

During the working process, the omni antenna radiates equally in all horizontal directions, while the power radiated drops off in the rise of vertical directions.

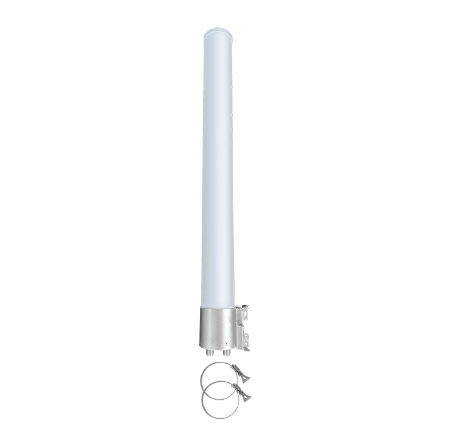

Mimo Omni Antenna


Mimo Omni Antenna

How Does Omni Directional Antenna Work?

The omni directional antenna makes use of the radiation to achieve the transmission and reception of wireless signals.

During the transmitting process, the omni directional antenna converts electrical signals into electromagnetic waves and broadcasts them to the surrounding environment in the form of radiation.

During the receiving process, the omni directional antenna receives electromagnetic waves in the surrounding environment and converts them into electrical signals.

And, the transmitting and receiving areas of the omni directional antenna are usually spherical areas, so omni directional antenna can achieve omnidirectional signal transmission and reception.

What is An Omnidirectional Antenna Used for?

Due to its 360-degree coverage and strong communication in all directions, the mimo omnidirectional antenna plays a crucial role in the current network world. Here are some common applications for omnidirectional antennas:

●Wi-Fi Networks

Omnidirectional antennas are frequently used in Wi-Fi routers and access points to provide wireless internet access in homes, offices, and public spaces. They ensure that Wi-Fi devices (e.g., laptops, smartphones, and tablets) can connect from any direction within the coverage area.

●Cellular Networks

In cellular communication systems, omnidirectional antennas are used on cell towers to provide coverage to mobile devices within a specific cell. They help ensure that mobile phones and other cellular devices can establish and maintain connections regardless of their location within the cell.

●Two-Way Radio

Omnidirectional antennas are commonly used in two-way radio systems, such as walkie-talkies and public safety radios. They enable communication between radios in various directions and are suitable for first responders, security personnel, and other users who need reliable communication in all directions.

●Public Safety and Emergency Services

Omnidirectional antennas are vital for public safety and emergency services communication systems, ensuring that first responders can communicate effectively in any direction during critical situations.

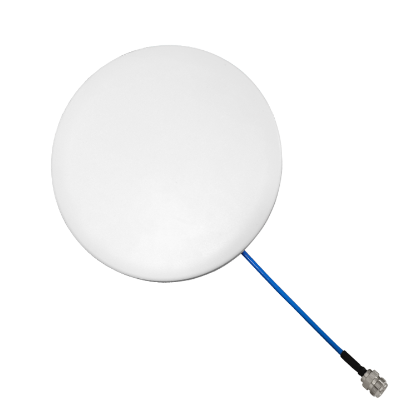

Omnidirectional Ceiling Antenna

●Marine and Aviation Communication

In maritime and aviation environments, omnidirectional antennas are used to establish radio communication between ships, aircraft, and control centers. These antennas allow for reliable communication in all directions, regardless of the vessel or aircraft's orientation.

●RFID Systems

Radio-frequency identification (RFID) systems often use omnidirectional antennas to read RFID tags placed on items, assets, or vehicles as they move in and out of the antenna's coverage area. This ensures that the tags are detected regardless of their orientation.

●Point-to-Multipoint Wireless Networks

In point-to-multipoint wireless networks, such as outdoor wireless broadband connections or surveillance systems, omnidirectional antennas at the central base station provide coverage to multiple client devices spread in various directions around the base station.

●Smart Home and IoT Devices

Some smart home and Internet of Things (IoT) devices use omnidirectional antennas for communication with a central hub or router. This allows for connectivity from various locations within a smart home or IoT network.

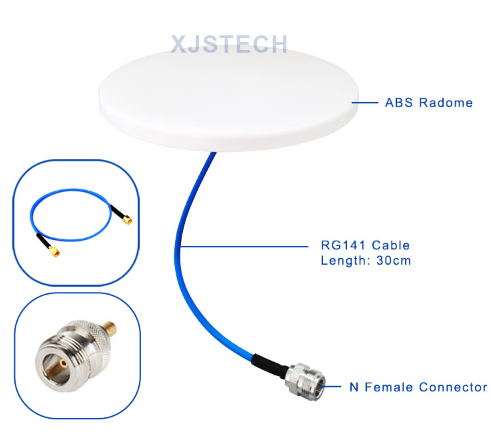

Mimo Omnidirectional Antenna


Mimo Omnidirectional Antenna

When to Use Omni Directional Antenna?

Since the wide application of the mimo omnidirectional antenna and all-directions of wireless coverage, you may wonder when to omnidirectional ceiling antenna to used. It is highly recommended to use a mimo omnidirectional antenna in long-range wireless transmission projects. Here are the details about the application conditions of the mimo omnidirectional antenna:

●There are multiple cellular towers nearby

Places have multiple cell towers and towers' distance of no more than 5 miles away is an ideal installation place for the outdoor omni antenna. By the way, if the cell towers have a distance of more than 5 miles away, a directional antenna will be the better option.

●The usable signal is available, but nearby obstacles interfere with the signal

If the place has multiple obstacles and has a below-average signal outdoor and unstable signal indoors, the mimo omnidirectional antenna is the perfect communication option. The mimo omnidirectional antenna is able to receive and send signals from any direction.

How Far Will An Omni Directional Antenna Reach?

On average, the outdoor omni antenna ideally can reach up to 1 mile.


Finally, the omni directional wifi antenna is one of the most universal antenna for the application, so it is widely seen in many wireless communication systems. With its full direction coverage, the mimo omnidirectional antenna has become an indispensable part of scenarios where consistent signal distribution is necessary.

XJS is one of the leading omni antenna manufacturers in China, providing wide models of omni directional wifi antennas to satisfy different application conditions.
