1710 - 2700 MHz 22 dBi MIMO Dish Antenna

Model: XJS-DP-D1727-22HV

Freq.: 1710-2700 MHz

Gain: 22 dBi

VSWR: ≤1.8

HPBWH: 17°

HPBWv: 18°

Polarization: Horizontal+Vertical

  • Innovative mounting accessories for easier installation
  • High F/B ratio
Contact Us

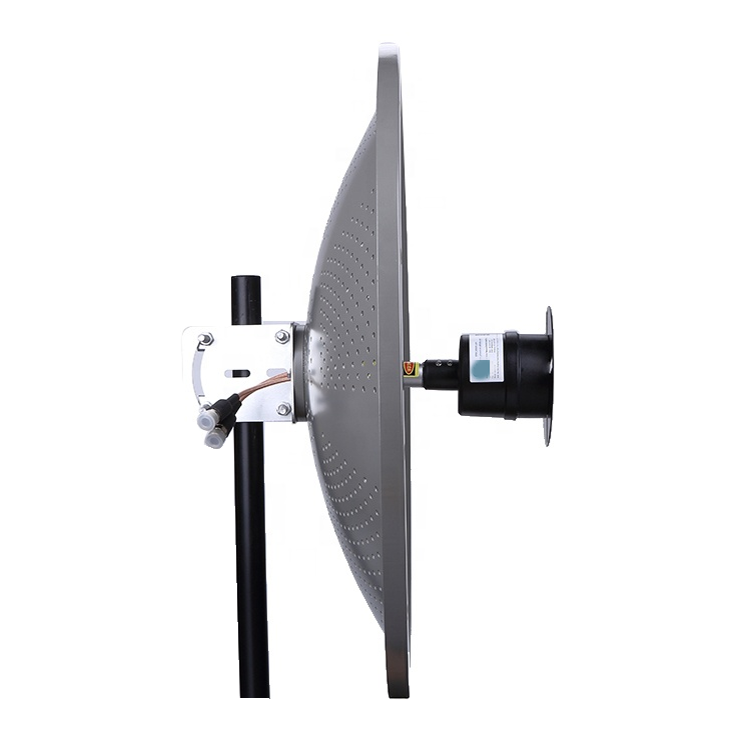

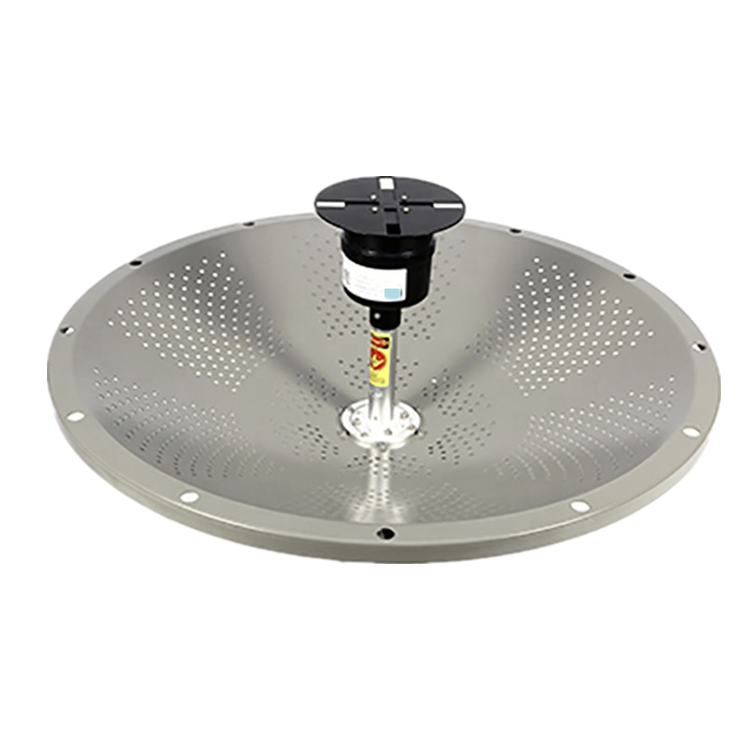

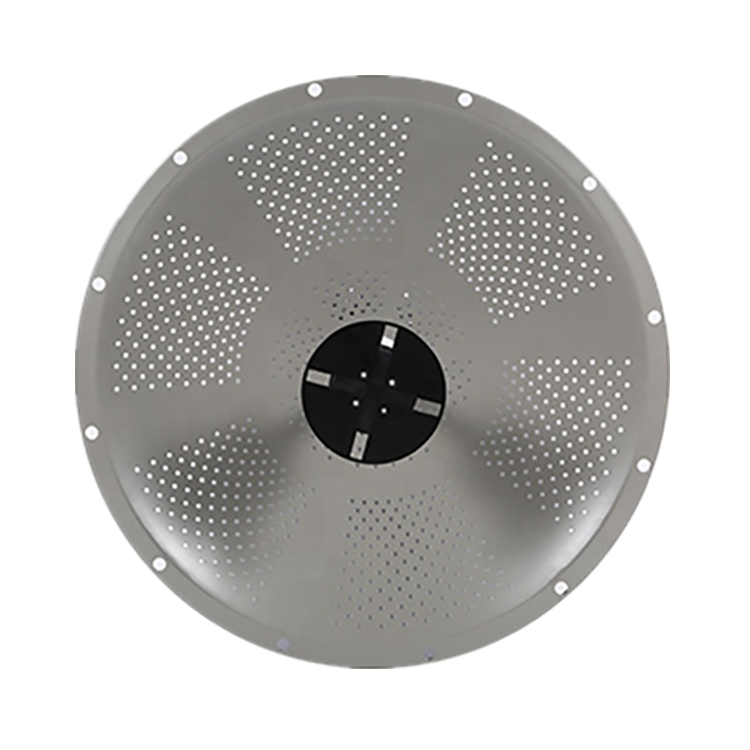

The model XJS-DP-D1727-22HV is a popular MIMO parabolic antenna of XJS technology. It has the characteristics of high gain(22dBi) and high front to back ratio. It can maintain high performance in the frequency range of 1710-2700MHz and is suitable for outdoor remote point-to-point(PTP) 4G LTE signal transmission to solve the problem of remote signal reception or transmission. XJS technology uses 1.5mm thick paraboloid, sufficient material, make the antenna durable.

This antenna uses pure copper N-Female connector and is equipped with two low-loss RG141 jumper cables to reduce signal transmission loss and ensure high performance of the antenna.

In terms of installation details, XJS technology has made more humanistic consideration for parts, making installation faster and more convenient, and improving users' experience of use.

Over the years, with good antenna quality and professional service, XJS Technology has been favored by customers.

Model

XJS-DP-D1727-22HV

Frequency Range

1710 - 2700 MHz

Gain

22 dBi

Horizontal Beamwidth(3dB)

17°

Vertical Beamwidth(3dB)

18°

Polarization

H+V

F/B Ratio

≥ 28 dB

VSWR

≤ 1.8

Impedance

50 Ω

Connector

2 x N-Female

Max. Power

100 W

Lightning Protection

DC Ground

Dimension

Dia.600 mm

Weight

5 kg

Operating Temperature

-40℃~+65℃

Wind Loading

140 km/h

Mounting

Pole Mount



  •  Adjustable dual polarity feed horn systems
  •  1700-2700MHz applications
  •  4G LTE applications
  •  MIMO and 802.11n applications
  •  Long distance backhaul and Point to Point data links
