1710-4200 Mhz Dish Antenna | 1710 - 4200 MHz 4G LTE 5G 25 dBi MIMO Dish Antenna

Model: XJS-DP-D1742-22HV

Freq.: 1710-4200 MHz

Gain: 25 dBi

VSWR: ≤1.8

HPBWH:

HPBWv:

Polarization: Horizontal+Vertical

  • Innovative mounting accessories for easier installation
  • High F/B ratio
Contact Us

Introduction to 1710-4200 Mhz Dish Antenna

The model XJS-DP-D1742-25HV is a popular MIMO parabolic antenna of XJS technology. It has the characteristics of high gain(25dBi) and high front to back ratio. It can maintain high performance in the frequency range of 1710-4200MHz and is suitable for outdoor remote point-to-point(PTP) 4G LTE/5G signal transmission to solve the problem of remote signal reception or transmission. XJS technology uses 2.0mm thick paraboloid, sufficient material, make the antenna durable.

This antenna uses pure copper N-Female connector and is equipped with two low-loss RG141 jumper cables to reduce signal transmission loss and ensure high performance of the antenna.

In terms of installation details, XJS technology has made more humanistic consideration for parts, making installation faster and more convenient, and improving users' experience of use.

Over the years, with good antenna quality and professional service, XJS Technology has been favored by customers.

What are the Components of the 1710-4200 Mhz Dish Antenna?

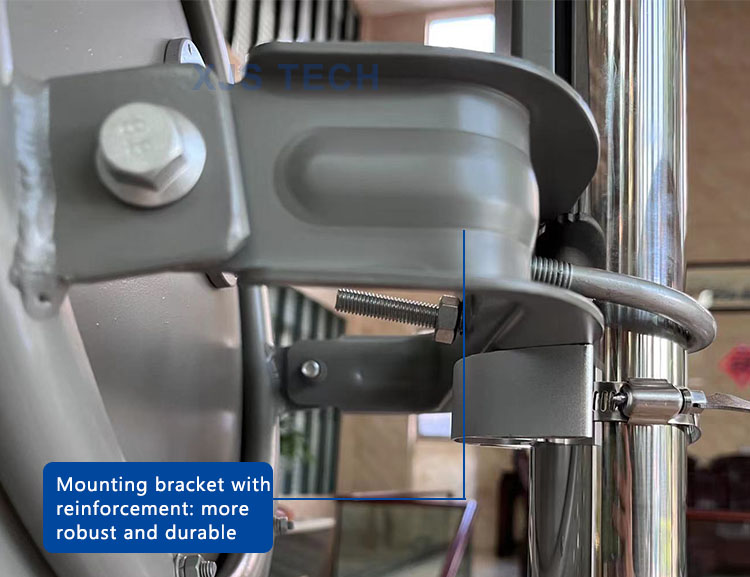

Mounting bracket with reinforcement:more robust and durable

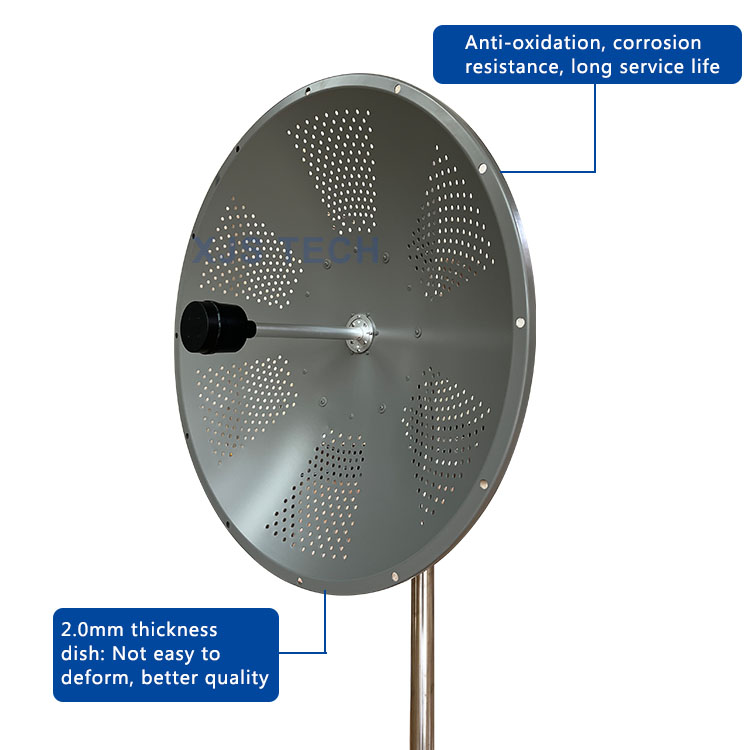

Anti-oxidation,corrosion resistance, long service life

2.0mm thickness dish: Not easy todeform, better quality

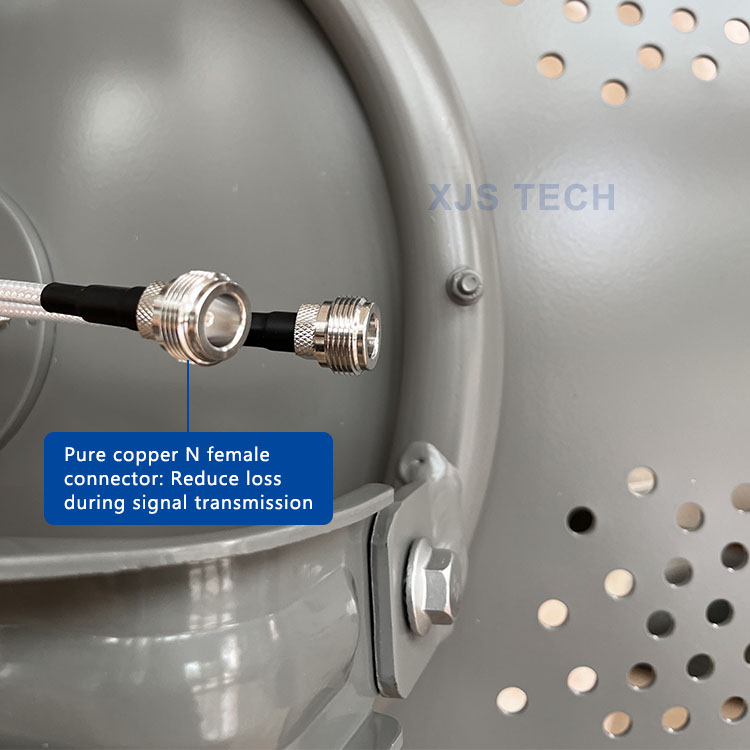

Pure copper N female connector: Reduce loss during signal transmission

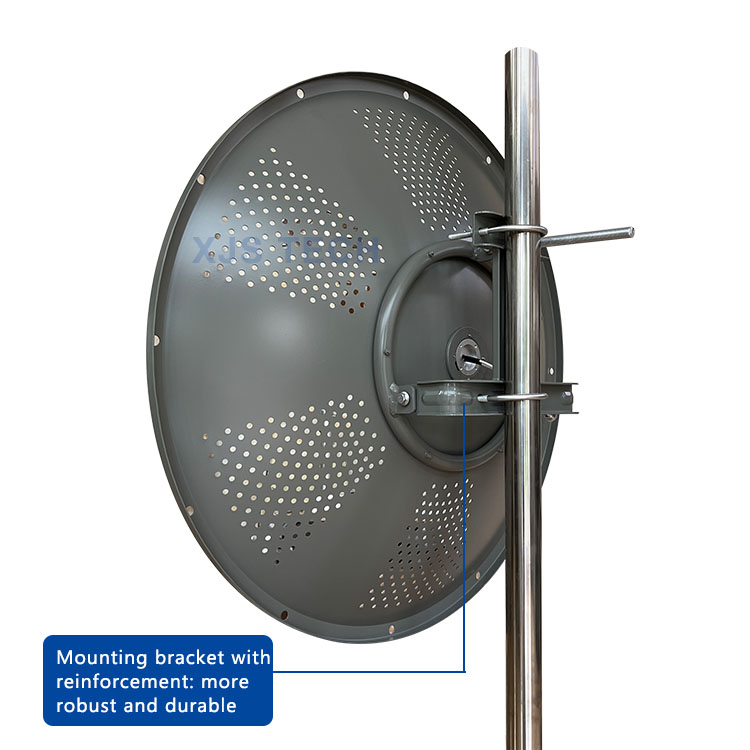

Mounting bracket with reinforcement:more robust and durable




What are the Benefits of Using 1710-4200 mhz Dish Antenna?

Various dish antennas are available in the communication field. You may have no full understanding about the each mode of dish antenna. In this section, the author would give an introduction about XJS’s 1710-4200 mhz dish antenna.

User-Focused Design

Compared with other traditional dish antennas, this 1710-4200 mhz dish antenna is user-friendly. In other words, it is easy to install and maintain. The worker can spend less time setting up and more time enjoying high-quality connections.

Adaptable Application

The 1710-4200 mhz dish antenna is perfect for adjustable dual polarity feed horn systems, MIMO and 802.11n applications, long-distance backhaul, and point-to-point data links. Overall, it's the versatile solution for all your connectivity needs.

Extreme Weather Resistance

As an outdoor antenna, the 1710-4200 mhz dish antenna impress you a lot in the weather resistance. It is able to operate between -40°C to +65°C and withstand wind speeds up to 210 km/h. There is no doubt that the 1710-4200 mhz dish antenna thrives even in the most demanding environments.

Premium Materials

The 1710-4200 mhz dish antenna is made of a robust 2.0mm thick paraboloid, so it is extermely durable.

Model

XJS-DP-D1742-25HV

Frequency Range

1710 - 2700 MHz

3200-4200 MHz

Gain

23 dBi/25dBi

Horizontal Beamwidth(3dB)

10°/8°

Vertical Beamwidth(3dB)

10°/7°

Polarization

H+V

F/B Ratio

≥ 28 dB

VSWR

≤ 1.8

Impedance

50 Ω

Connector

2 x N-Female

Max. Power

50 W

Lightning Protection

DC Ground

Dimension

Dia.900 mm

Weight

12 kg

Operating Temperature

-40℃~+65℃

Wind Loading

210 km/h

Mounting

Pole Mount



  •  Adjustable dual polarity feed horn systems
  •  1700-4200MHz applications
  •  4G LTE/5G applications
  •  MIMO and 802.11n applications
  •  Long distance backhaul and Point to Point data links
