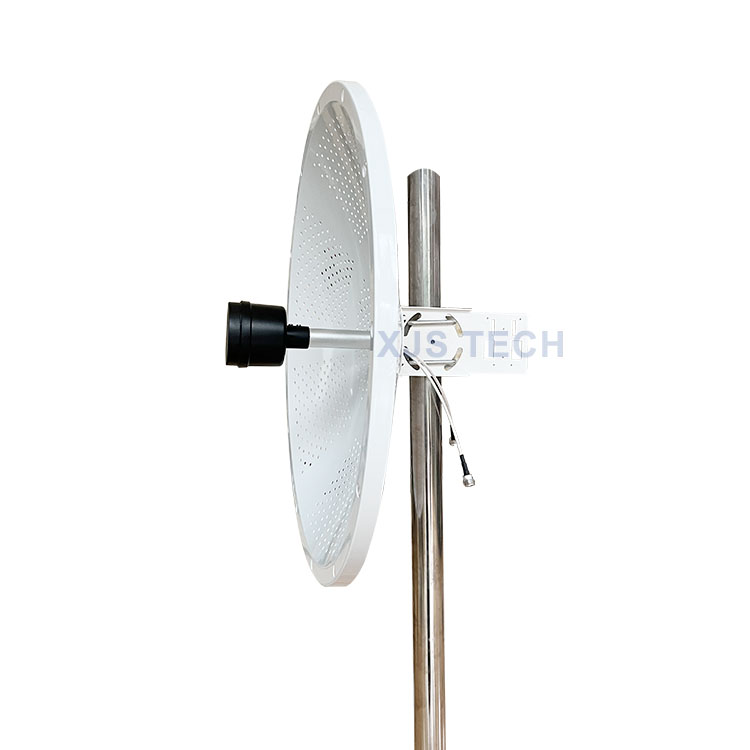

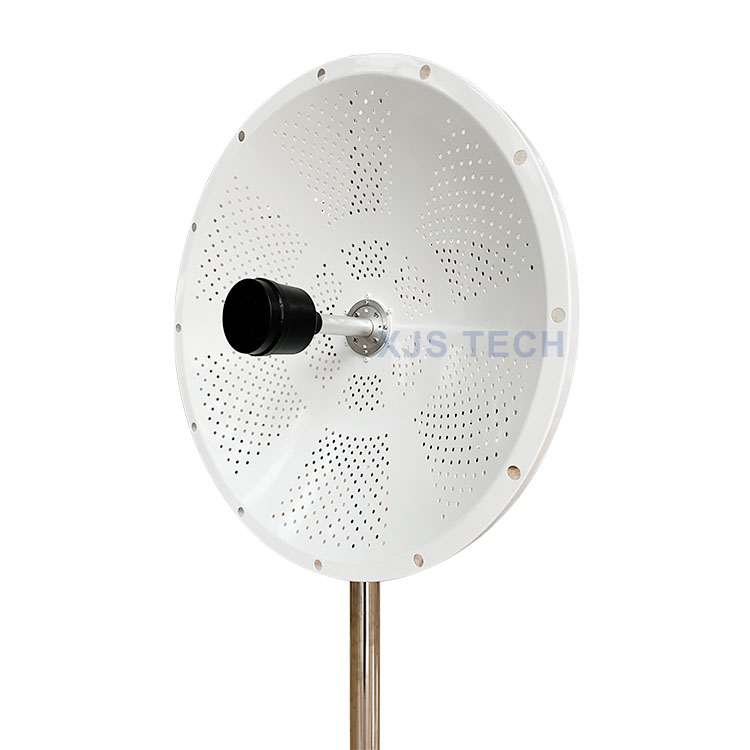

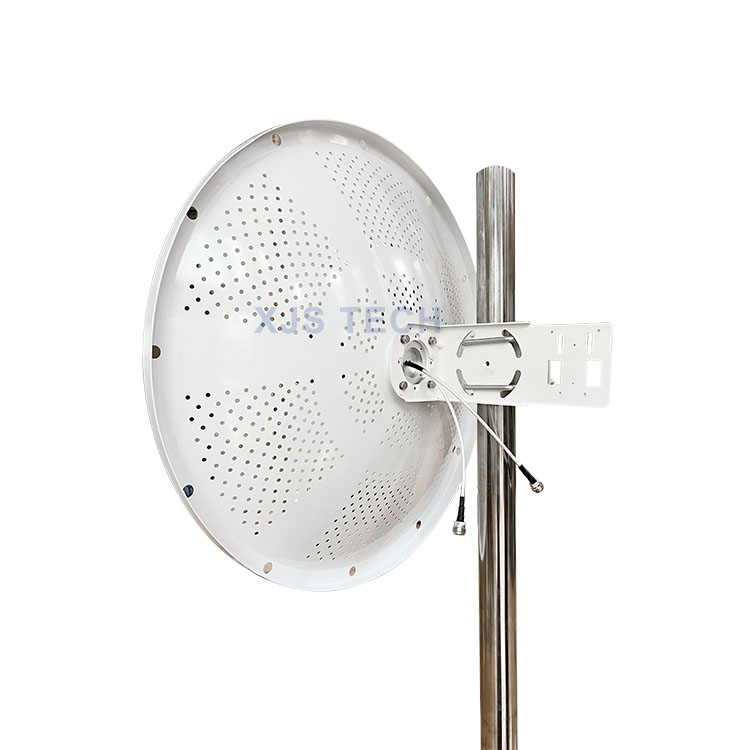

1710-4200 MHz 4G LTE 5G 22 dBi MIMO Dish Antenna

Model: XJS-DP-D1742-22HV

Freq.: 1710-4200 MHz

Gain: 22 dBi

VSWR: ≤1.8

HPBWH: 15°/12°

HPBWv: 15°/12°

Polarization: Horizontal+Vertical

  • Innovative mounting accessories for easier installation
  • High F/B ratio
Contact Us

Introduction to 1710-4200 Mhz Dish Antenna

The model XJS-DP-D1742-22HV is a popular MIMO parabolic antenna of XJS technology. It has the characteristics of high gain(22dBi) and high front to back ratio. It can maintain high performance in the frequency range of 1710-4200MHz and is suitable for outdoor remote point-to-point(PTP) 4G LTE/5G signal transmission to solve the problem of remote signal reception or transmission.

In terms of installation details, XJS technology has made more humanistic consideration for parts, making installation faster and more convenient, and improving users' experience of use.

Over the years, with good antenna quality and professional service, XJS Technology has been favored by customers.

Model

XJS-DP-D1742-22HV

Frequency Range

1710 - 2700 MHz

3200-4200 MHz

Gain

21 dBi/22dBi

Horizontal Beamwidth(3dB)

15°/12°

Vertical Beamwidth(3dB)

15°/12°

Polarization

H+V

F/B Ratio

≥ 28 dB

VSWR

≤ 1.8

Impedance

50 Ω

Connector

2 x N-Female

Max. Power

50 W

Lightning Protection

DC Ground

Dimension

Dia.600 mm

Weight

5 kg

Operating Temperature

-40℃~+65℃

Wind Loading

210 km/h

Mounting

Pole Mount



  •  Adjustable dual polarity feed horn systems
  •  1700-4200MHz applications
  •  4G LTE/5G applications
  •  MIMO and 802.11n applications
  •  Long distance backhaul and Point to Point data link
