Omni Antennas

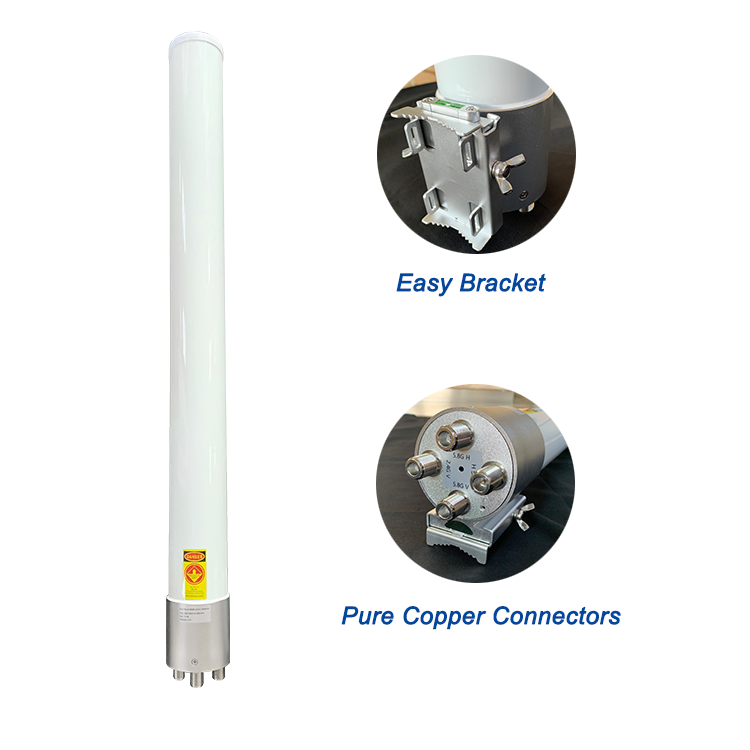

2.4/5 GHz Dual Band 10 dBi MIMO Omni Antenna

Model: XJS-DP-O2458-10HV

Freq.: 2400-2500 MHz/5150-5850 MHz

Gain: 10 dBi

VSWR: ≤1.5

HPBWH: 360°

HPBWv:

Polarization: Vertical

  • 2.4/5 GHz applications
  • WiFi 6
Contact Us

Model

XJS-DP-O2458-10HV

Frequency Range

2400 - 2500 MHz

5150 - 5850 MHz

Gain

10 dBi

Horizontal Beamwidth(3dB)

360°

Vertical Beamwidth(3dB)

Polarization

Horizontal+Vertical

VSWR

≤ 1.5

Impedance

50 Ω

Connector

N-Female or N-Male

Max. Power

100 W

Lightning Protection

DC Ground

Dimension

Φ 75 x 850 mm

Weight

2.1 kg

Operating Temperature

-40℃~+65℃

Wind Loading

140 km/h

Mounting

Pole Mount

5.8 GHz UNII and ISM applications

2.4/5.8 GHz IEEE 802.11a/b/g and 802.11ac applications

2.4GHz Wi-Fi applications

Point-to-multipoint applications

Wireless video systems

Security monitor
