Freq.: 4800-6500 MHz
Gain: 19 dBi
VSWR: ≤1.8
HPBWH: 90°
HPBWv: 4°
Polarization: ±45°
•MIMO applications
•WiMAX, WISP, WiFi, mobile communication and cell-sites
•Security monitor
•Point-to-multipoint applications
Xiang Jia Sheng Technology designs and manufactures 5GHz 90-degree sector antennas.
The antenna supports frequencies in the 4800-6500MHz range and has excellent VSWR performance.
XJS Technology's 5GHz 90-degree antenna features high gain and low standing wave ratio. Users install four 90-degree antennas at the same point, and they can achieve 360-degree coverage of the signal, making the signal of 5GHz WiFi spread more widely.

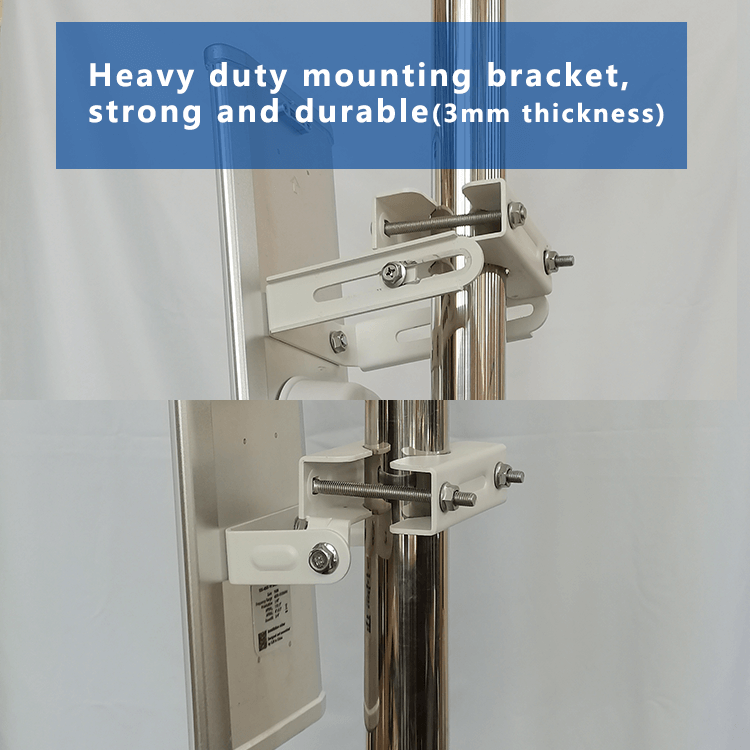

The antenna is equipped with a strong and reliable mounting bracket. XJS Technology has refined the details of mounting brackets to create a more user-friendly design.
All hardware accessories of the antenna are made of high quality materials, and do reliable anti-corrosion treatment to extend the service life of the antenna.
|
Model |
XJS-S4865-19X-90 |
|
Frequency Range |
4800 - 6500 MHz |
|
Gain |
19 dBi |
|
Horizontal Beamwidth(3dB) |
90° |
|
Vertical Beamwidth(3dB) |
4° |
|
Polarization |
± 45° |
|
F/B Ratio |
≥ 26 dB |
|
VSWR |
≤ 1.8 |
|
Impedance |
50 Ω |
|

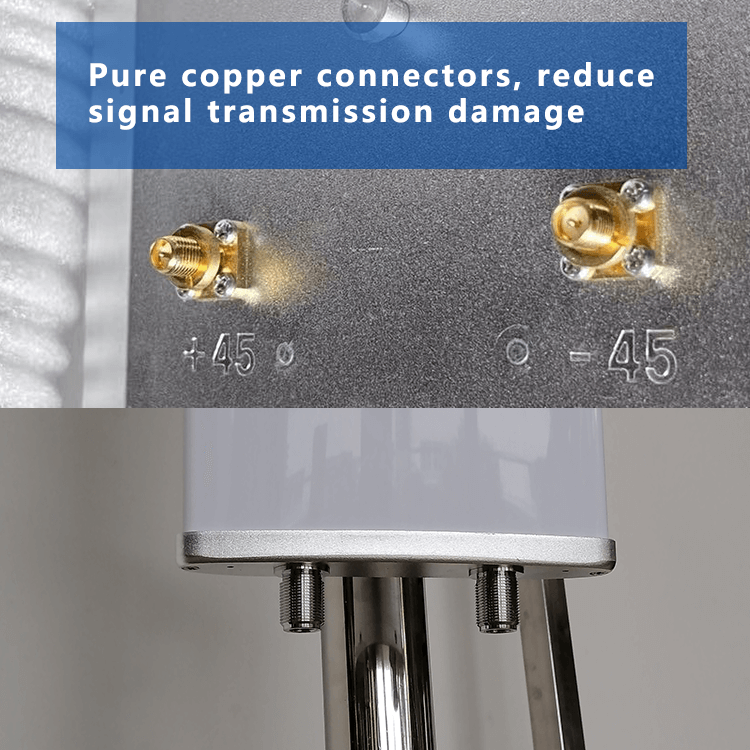

Connector |
2 x SMA |
|
Max. Power |
50 W |
|
Lightning Protection |
DC Ground |
|
Dimension |
700 x 135 x 35 mm |
|
Weight |
3.8 kg |
|
Operating Temperature |
-40℃～+65℃ |
|
Wind Loading |
210 km/h |
|

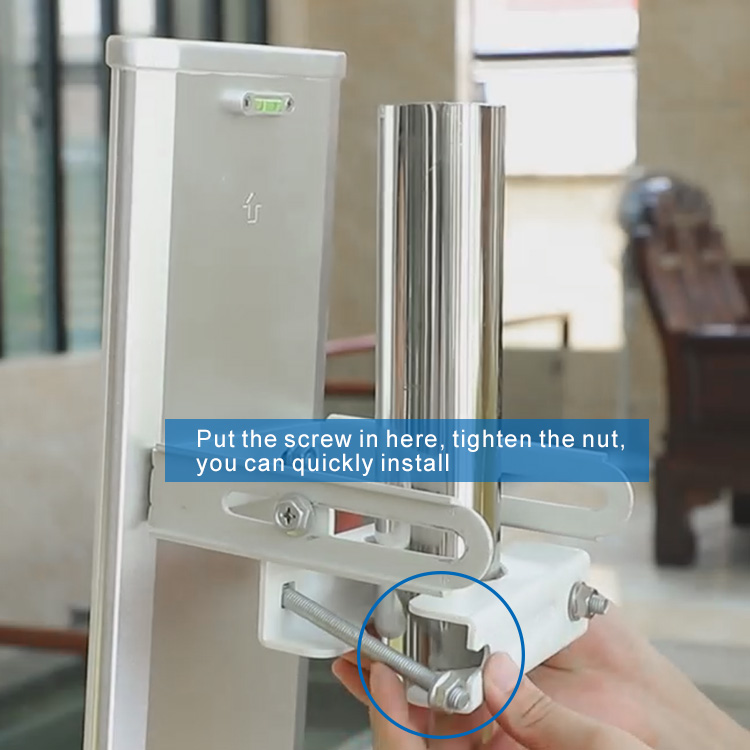

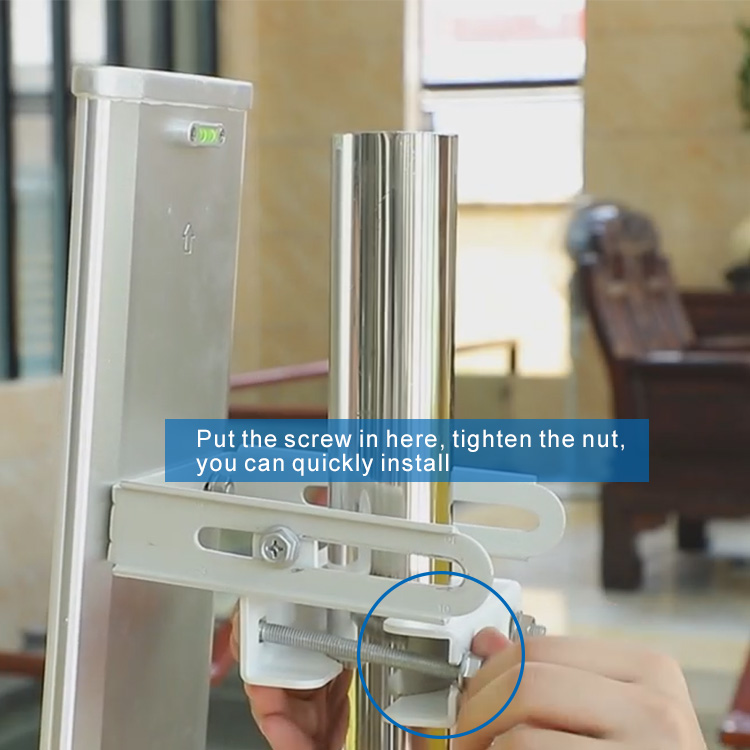

Mounting |
Pole Mount |
