5GHz 17dBi 90 Degree MIMO Sector Antenna

5GHz 17dBi 90 Degree MIMO Sector Antenna

Model: XJS-DP-S4865-17-90

Freq.: 4800-6500 MHz

Gain: 17 dBi

VSWR: ≤1.8

HPBWH: 90°

HPBWv: 8°

Polarization: H+V

•MIMO applications

•WiMAX, WISP, WiFi, mobile communication and cell-sites

•Security monitor

•Point-to-multipoint applications

5GHz 17 dBi 90 Degree MIMO Sector Antenna

Xiang Jia Sheng Technology designs and manufactures 5GHz 90-degree sector antennas.

The antenna supports frequencies in the 4800-6500MHz range and has excellent VSWR performance.

XJS Technology's 5GHz 90-degree antenna features high gain and low standing wave ratio. Users install four 90-degree antennas at the same point, and they can achieve 360-degree coverage of the signal, making the signal of 5GHz WiFi spread more widely.

Model	XJS-S4865-17-90
Frequency Range	4800 - 6500 MHz
Gain	17 dBi
Horizontal Beamwidth(3dB)	90°
Vertical Beamwidth(3dB)	8°
Polarization	H+V
F/B Ratio	≥ 26 dB
VSWR	≤ 1.8
Impedance	50 Ω

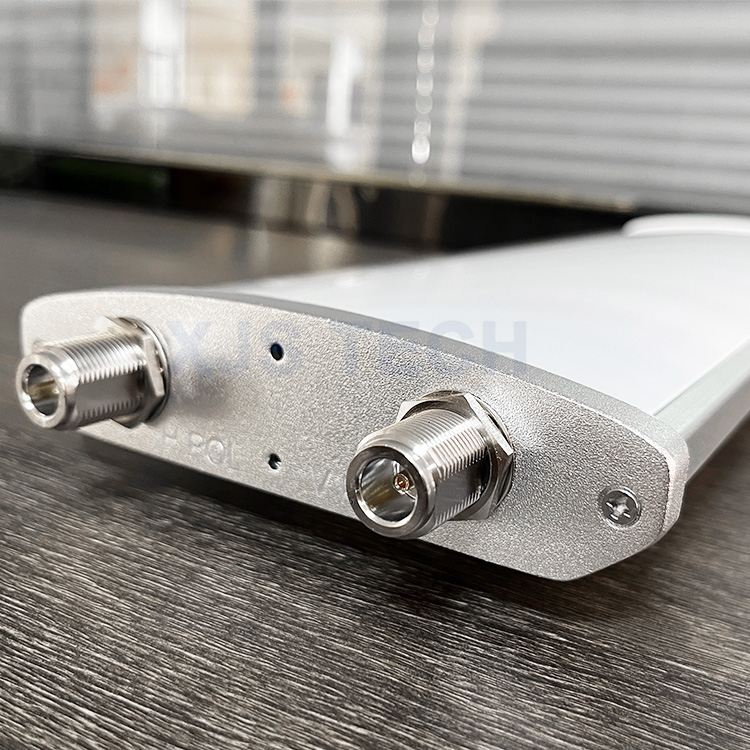

Connector	2 x SMA
Max. Power	50 W
Lightning Protection	DC Ground
Dimension	430 x 135 x 35 mm
Weight	1 kg
Operating Temperature	-40℃～+65℃
Wind Loading	170 km/h

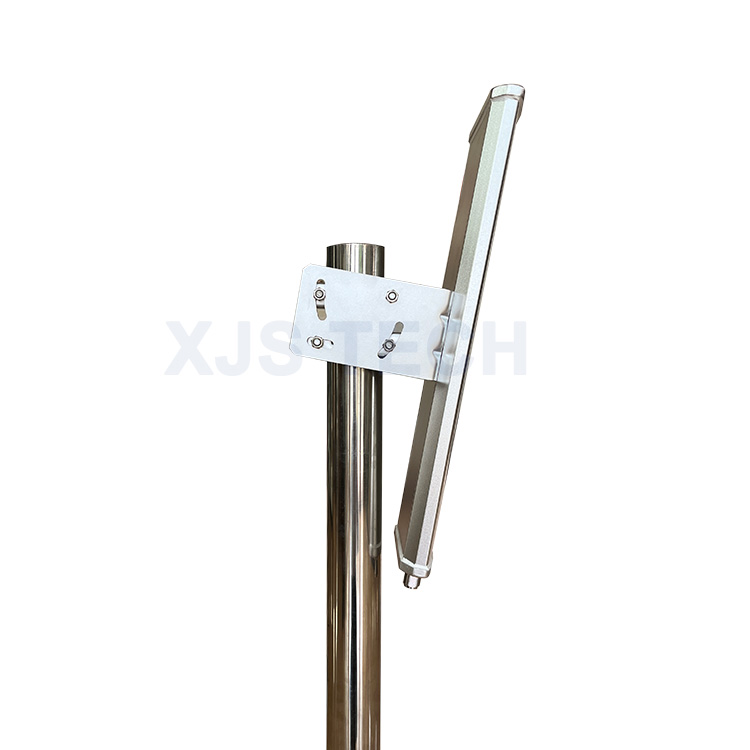

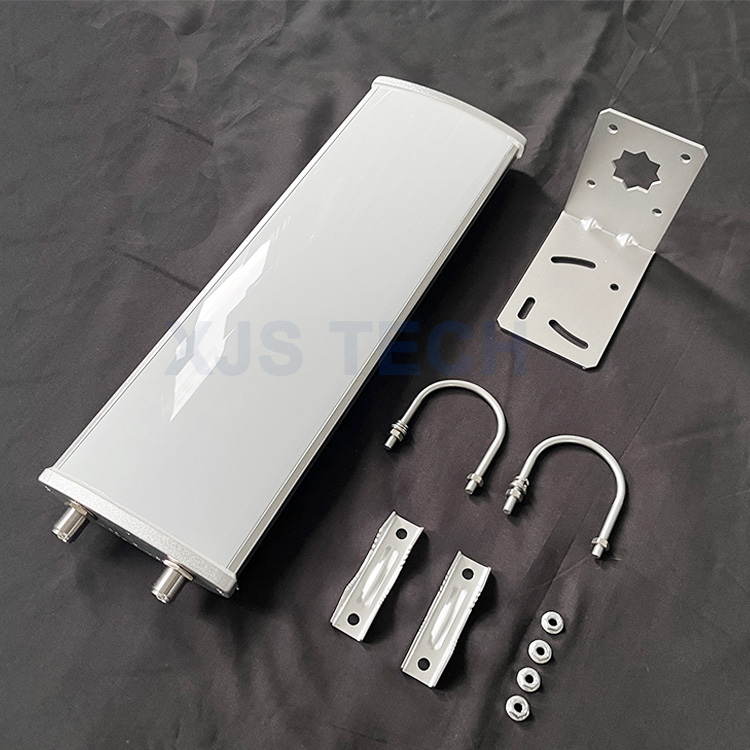

Mounting	Pole Mount
