Freq.: 698-2700 MHz
Gain: 6 dBi
VSWR: ≤1.5
HPBWH: 360°
HPBWv: 40°/25°
Polarization: Vertical
|
Model |
TQO-0627-6 |
|||
|
Frequency Range |
698 - 820 MHz |
824 - 960 MHz |
1710 - 2700 MHz |
|
|
Gain |
5 dBi |
8 dBi |
6 dBi |
|
|
Horizontal Beamwidth(3dB) |
360° |
|||
|
Vertical Beamwidth(3dB) |
40° |
32° | 25° | |
|
Polarization |
Vertical |
|||
|
VSWR |
≤1.5 |
|||
|
Impedance |
50 Ω |
|||
|

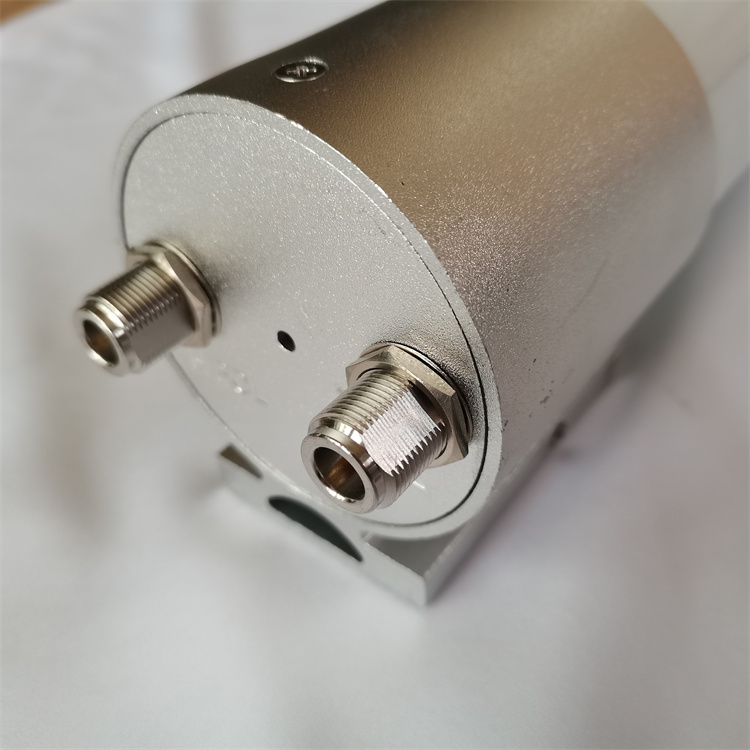

Connector |
N-Female |
|||
|
Max. Power |
50 W |
|||
|
Lightning Protection |
DC Ground |
|||
|
Dimension |
Φ75 x 700 mm |
|||
|
Weight |
2.1 kg |
|||
|
Operating Temperature |
-40℃～+65℃ |
|||
|
Wind Loading |
140 km/h |
|||
|

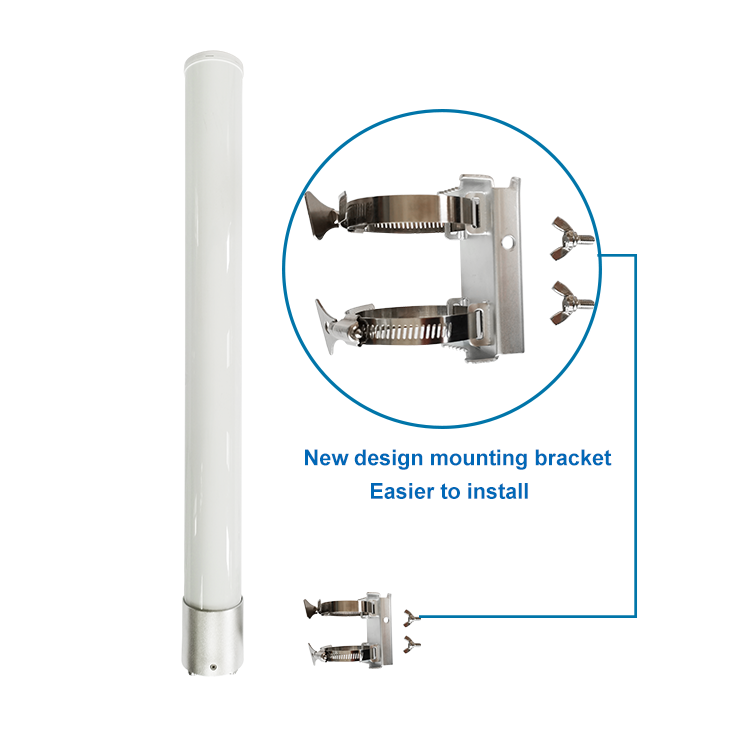

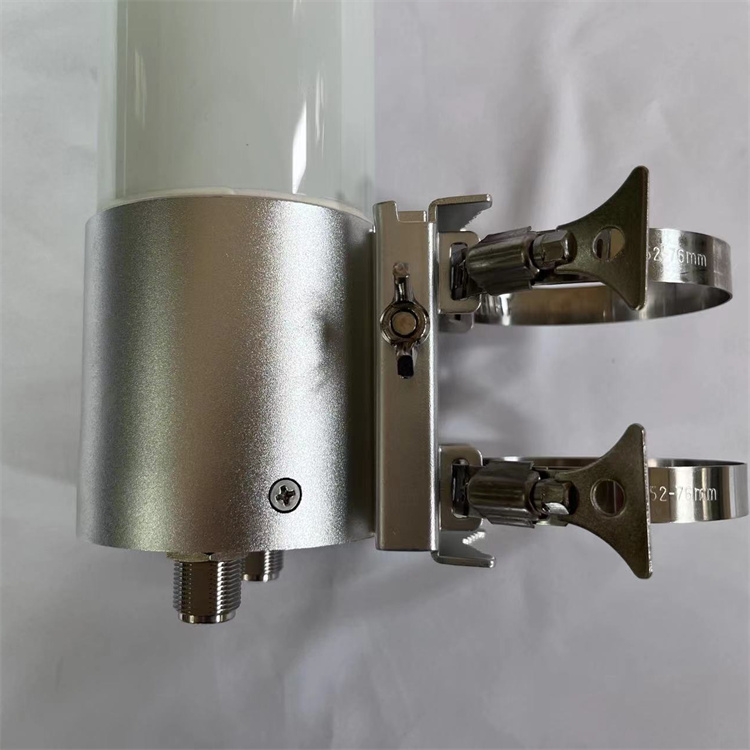

Mounting |
Pole Mount |
|||
