Dish Antennas

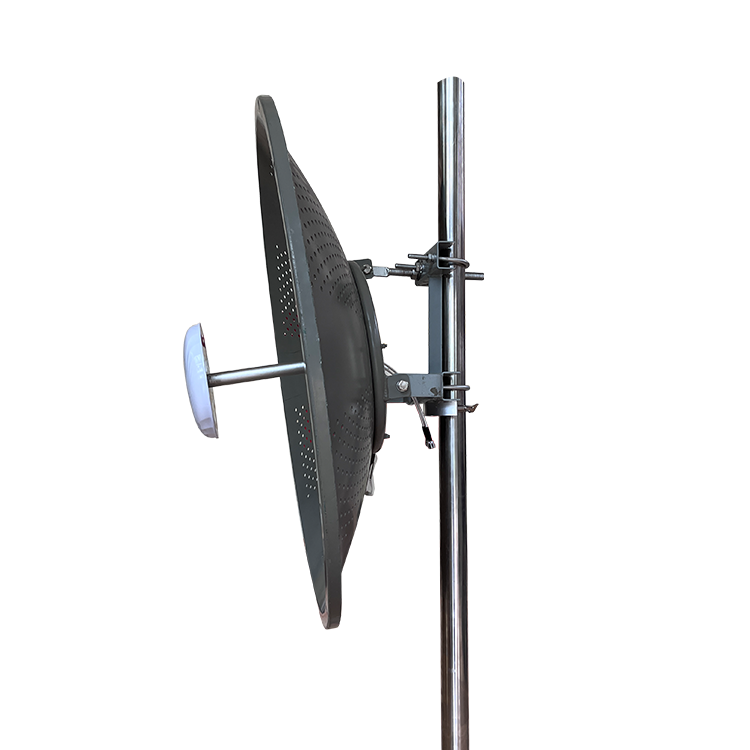

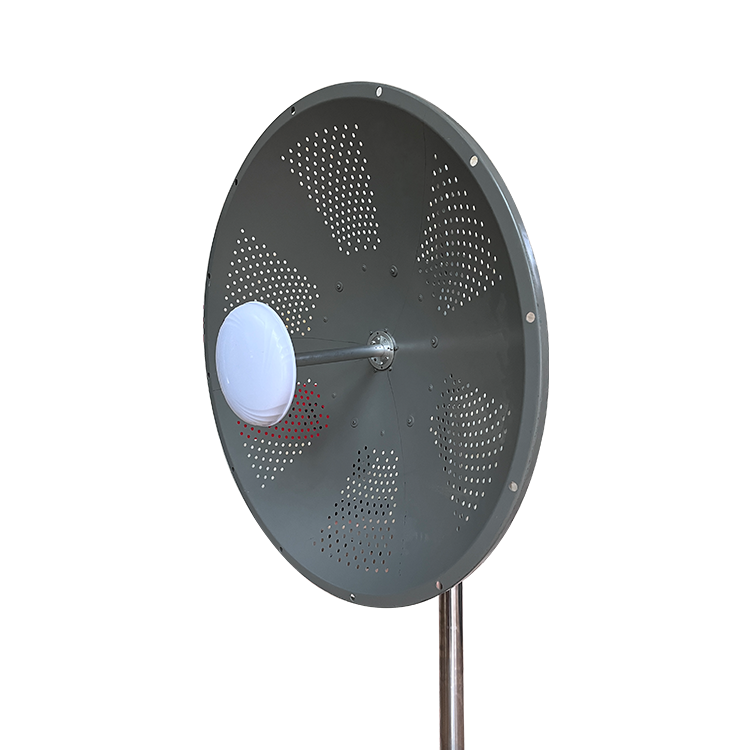

698 - 3800 MHz 30 dBi MIMO Dish Antenna

Model: TDD-0638-30

Freq.: 698-3800 MHz

Gain: 30 dBi

VSWR: ≤1.8

HPBWH: 15°

HPBWv: 15°

Polarization: Vertical+Vertical

  • Innovative mounting accessories for easier installation
  • Ultra wide frequency range
Contact Us

Features of 698-3800mhz Omni Antenna

The model TDD-0638-30 is a popular MIMO parabolic antenna of XJS technology. It has the characteristics of high gain(30dBi) and high front to back ratio. It works in the frequency range of 698-3800MHz and is suitable for outdoor remote point-to-point(PTP) 3G/4G LTE/5G signal transmission to solve the problem of remote signal reception or transmission. XJS technology uses 2.0mm thick paraboloid, sufficient material, make the antenna durable.

This antenna uses pure copper N-Female connector and is equipped with two low-loss RG141 jumper cables to reduce signal transmission loss and ensure high performance of the antenna.

In terms of installation details, XJS technology has made more humanistic consideration for parts, making installation faster and more convenient, and improving users' experience of use.

Over the years, with good antenna quality and professional service, XJS Technology has been favored by customers.


Why You Need To Buy Omni Antenna in XJS?

At XJS Technology, we are a dedicated enterprise specializing in the research, development, and manufacturing of communication antennas. Since our establishment in 2005, we have emerged as one of the well-known omni antenna manufacturers, offering top-of-the-line outdoor and indoor omni antennas for various communication applications. With a commitment to innovation, quality, and customer satisfaction, we strive to be your go-to partner for all your antenna needs.


Spanning over 5,000 square meters, our state-of-the-art facility is equipped with more than 50 sets of cutting-edge production equipment. This allows us to meet the growing demand for reliable antennas in an ever-evolving communication landscape. Our comprehensive expertise lies in an array of frequency bands, including 5G, 4G LTE, WiFi, and wireless LAN. As a result, we offer a diverse range of products that cater to the needs of different industries and applications.


Over the years, XJS Technology has amassed a wealth of professional knowledge and application experience through our relentless pursuit of antenna R&D, production, and sales. As a result, we are well-equipped to meet the unique needs of our customers. We proudly welcome OEM/ODM orders, allowing you to request custom designs tailored to your specific project requirements. Our team is dedicated to working closely with you to bring your vision to life and deliver antennas that exceed your expectations.


How Does Omni Directional Antenna Work?

An omni directional antenna is designed to radiate and receive signals equally in all directions. It achieves this by using a specific design that allows for a broad coverage pattern, spreading the signal evenly in a 360-degree horizontal plane.

The working principle of an omni antenna is based on the use of a vertically polarized radiator element. This element, often a vertical rod or whip, serves as the primary radiating element. When an electrical signal is applied to the radiator, it generates an electromagnetic field around it.

Does Antenna Gain Change with Frequency?

Yes, it does. The gain is frequency depend, so you can get from the same antenna more gain at a higher frequency than at a lower. The 1700 mhz antenna usually has 24±2 dBi gain. As for 1700-3800mhz dish antenna, it can achieve the 30 dbi gain.

What is the Best Frequency for Antenna?

As a matter of fact, each frequency range of the antenna has its ideal application. The best frequency for an antenna depends on the specific application and use case. For example, the 1700-3800 mhz dish antenna is ideal for  4G LTE applications, long-distance backhaul and point-to-point data links,  SOFDMA,  WiMAX 7 Mobile WiMAX, etc.



Frequency Range

698-960 MHz

1710-2700 MHz

3300-3800 MHz


14±2 dBi

24±2 dBi

30 dBi

Horizontal Beamwidth(3dB)




Vertical Beamwidth(3dB)






F/B Ratio

≥ 15 dB


≤ 1.8


50 Ω


2 x N-Female

Max. Power

50 W

Lightning Protection

DC Ground


Dia.900 mm


12 kg

Operating Temperature


Wind Loading

140 km/h


Pole Mount

What are the Features of 698-3800mhz Omni Antenna?

The 698-3800mhz omni antenna offers three frequency bands. The 698-960mhz omni antenna is deal for extended coverage and enhanced signal quality in lower frequency ranges, ensuring a strong connection even in challenging environments. The 1710-2700mhz omni antenna is a good option for high-speed data transfer and reliable connections, this band allows for seamless multimedia streaming and data-intensive applications. And, the 3300-3800mhz omni antenna is a preparation for the future with this band, as it offers support for the latest 5G technology, enabling lightning-fast data speeds and ultra-low latency.


With a gain of 14±2 dBi in the 698-960 MHz band, 24±2 dBi in the 1710-2700 MHz band, and a powerful 30 dBi in the 3300-3800 MHz band, our 698-3800mhz omni antenna ensures you receive and transmit data with minimal interference. The horizontal and vertical beamwidths of 30°±10°, 25°±5°, and 15°±6° respectively guarantee that your signal reaches its intended destination accurately. And, if you have no idea which frequency band is good for your application, you can consult XJS to get the 698-3800 mhz log periodic antenna calculator.


This 698-3800mhz omni antenna adopts an outstanding 698-3800 mhz log periodic antenna design, so it provides you with excellent network stability. The 698-3800 mhz log periodic antenna design features a vertical polarization design, which minimizes interference and maximizes signal integrity. With a front-to-back (F/B) ratio of ≥ 15 dB and a VSWR of ≤ 1.8, you can trust in the reliability of your wireless connection. With our accurate 698-3800 mhz log periodic antenna calculator, you can always get the perfect communication option for your projects.


And, this 698-3800 mhz log periodic antenna design includes 2 x N-Female connectors and a 50 Ω impedance, ensuring compatibility with a wide range of networking equipment. With a maximum power handling capacity of 50 W, you can count on consistent, high-quality performance.

What are the Applications of 1700-3800 Mhz Dish Antenna?

  •  1700-2700MHz applications
  •  4G LTE applications
  •  Long distance backhaul and Point to Point data links
  •  WiMAX 7 Mobile WiMAX
  •  Wireless Internet Provider "cell" sites
  •  3.5 GHz Band Applications
  •  Wireless LAN systems & IEEE 802.11n & 802.16e Applications
