868 MHz 9dBi Helium Fiberglass Omni Antenna

Model: XJS-SP-O868-9V

Freq.: 868 MHz

Gain: 9 dBi

VSWR: ≤1.5

HPBWH: 360°

HPBWV: 12°

Polarization: Vertical/Linear

UK/EU868
868MHz applications
Helium hotspot, RFID, WLAN, ISM BAND
LoRaWAN, IOT applications



Contact Us

868 MHz 9dBi Helium Fiberglass Omni Antenna


Xiang Jia Sheng Technology designs and manufactures LoRa omnidirectional fiberglass antennas. The 868MHz 8dBi omnidirectional fiberglass antenna can be used in the LoRaWAN and Helium projects, and is an important component in IOT.

XJS-SP-O868-9V with 9dBi high gain, has excellent VSWR performance in the 860-870 MHz band, ensuring a VSWR below 1.5, compared to the market VSWR performance of less than 2:1 antenna has a higher reflection efficiency.

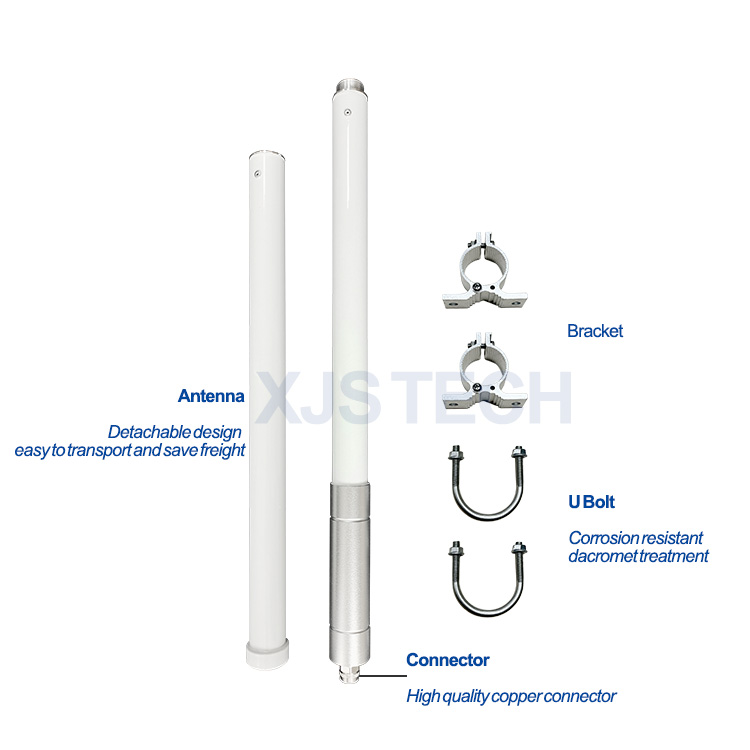

The antenna has a detachable disign, and packaging and transportation will be more convenient, saving transportation costs for wholesalers and users.

Convenient mounting bracket, improve the efficiency of installation. At the same time, XJS technology ensures that the mounting bracket is strong and reliable.

XJS is equipped with high-quality Dacrossa U bolts to extend the service life of the antenna in all aspects.

For more antenna designs, please contact WhatsApp: +86 13824808100


Model

XJS-SP-O868-9V

Frequency Range

860-870 MHz

Gain

9 dBi

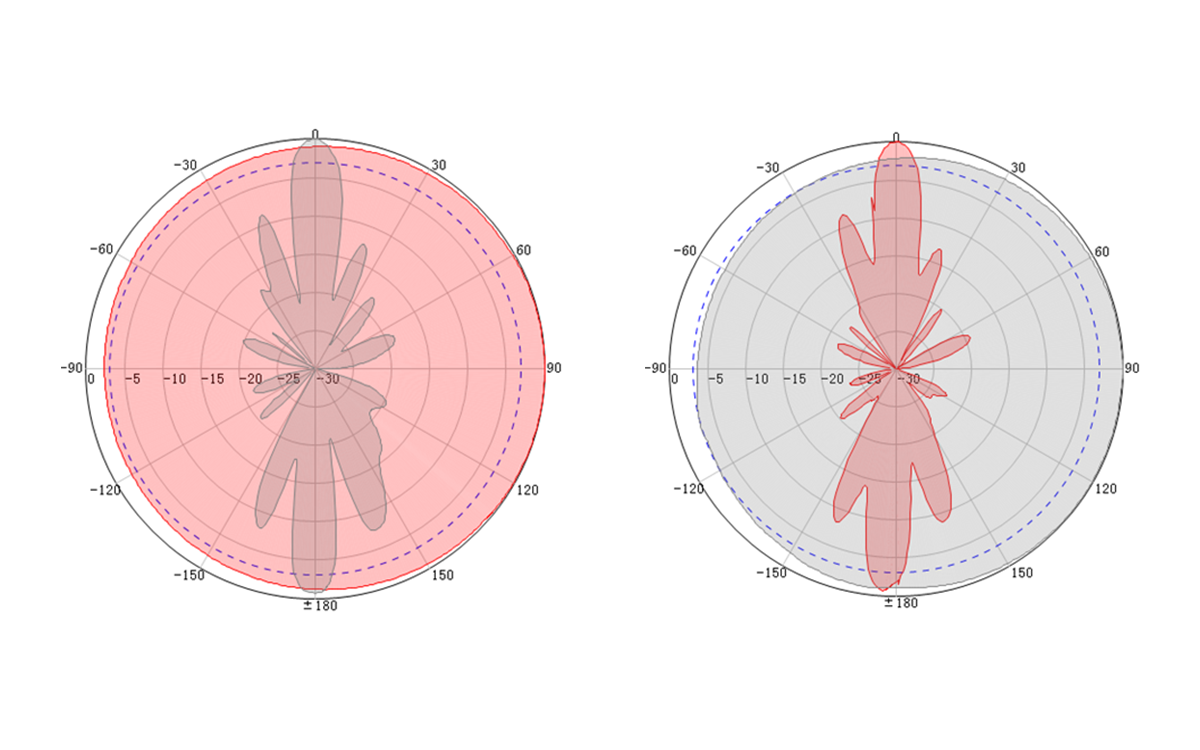

Horizontal Beamwidth(3dB)

360°

Vertical Beamwidth(3dB)

12°

Polarization

Vertical/Linear

VSWR

≤ 1.5

Impedance

50 Ω

Connector

N-Female or N-Male

Max. Power

100 W

Lightning Protection

DC Ground

Dimension

Φ 38 x 1650 mm

Weight

2.3 kg

Operating Temperature

-40℃~+65℃

Wind Loading

210 km/h

Mounting

Pole Mount




UK/EU868
868MHz applications
Helium hotspot, RFID, WLAN, ISM BAND
LoRaWAN, IOT applications
